We NK ENGINEERING SERVICES Provides best quality Ceramic Bearings for All types of High Frequency Spindles.
We have Germany Original FAG AND GMN Bearings to increase spindle life to 5X.
We also have Other Brands bearings which is also cearmic and very good quality.

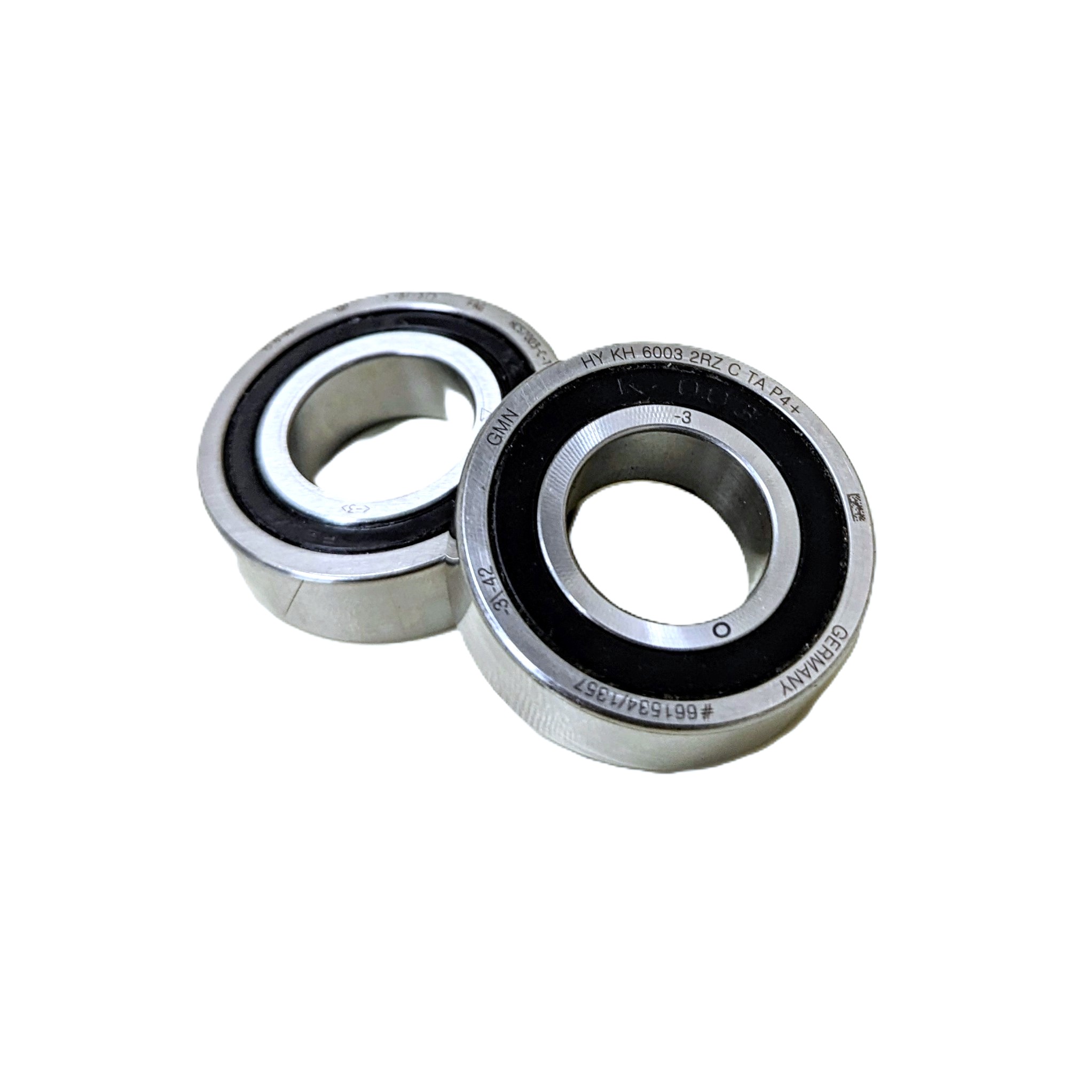

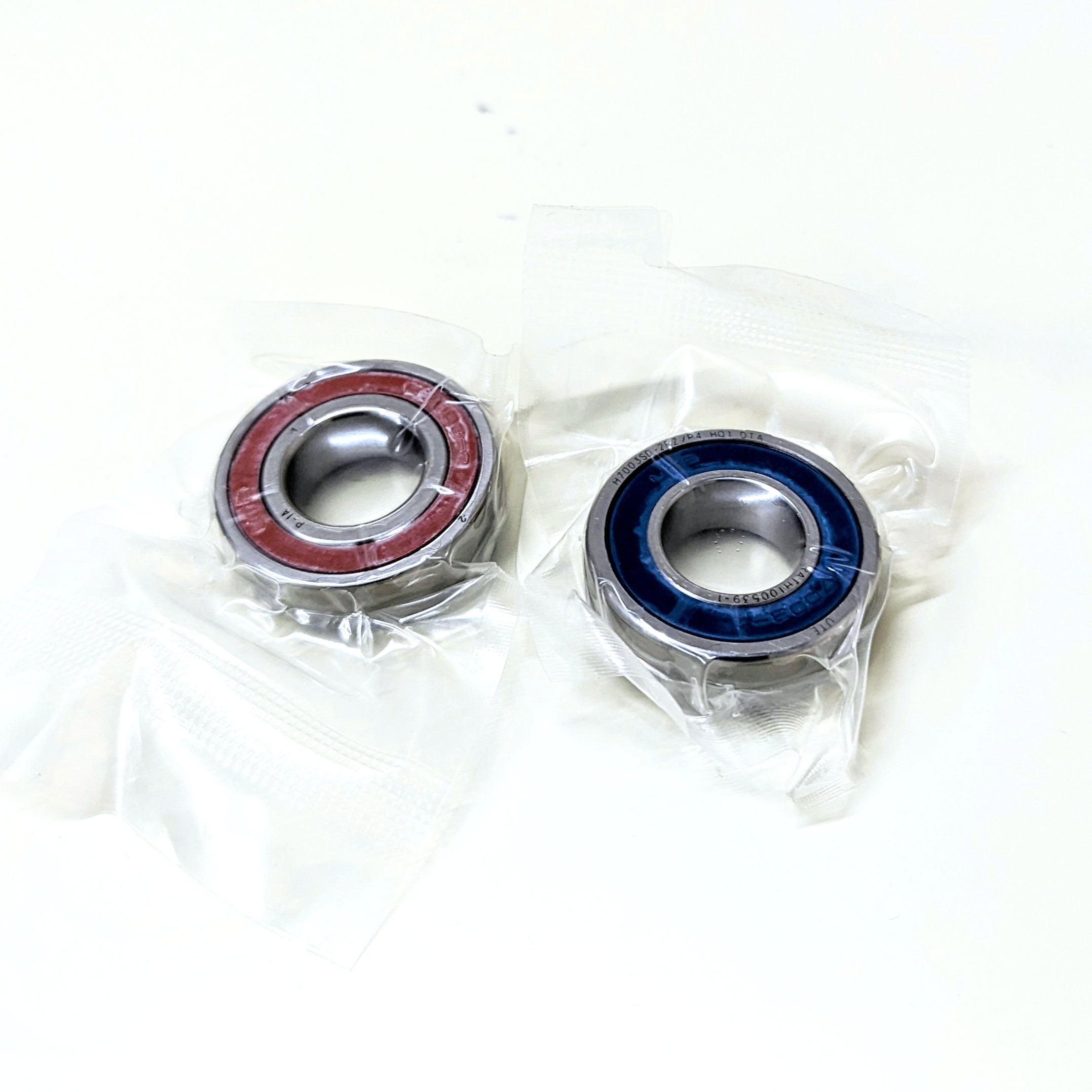

We supply all sizes of Angular contact ceramic bearings 7000, 7002, 7003, 7004, 7005
S.no.
Parameter
Value
1.
Model no.
H7003SD-P4 HQ1 DTA
2.
Material
Steel
3.
Ball material
Ceramic
4.
Bearing Type
Sealed
5.

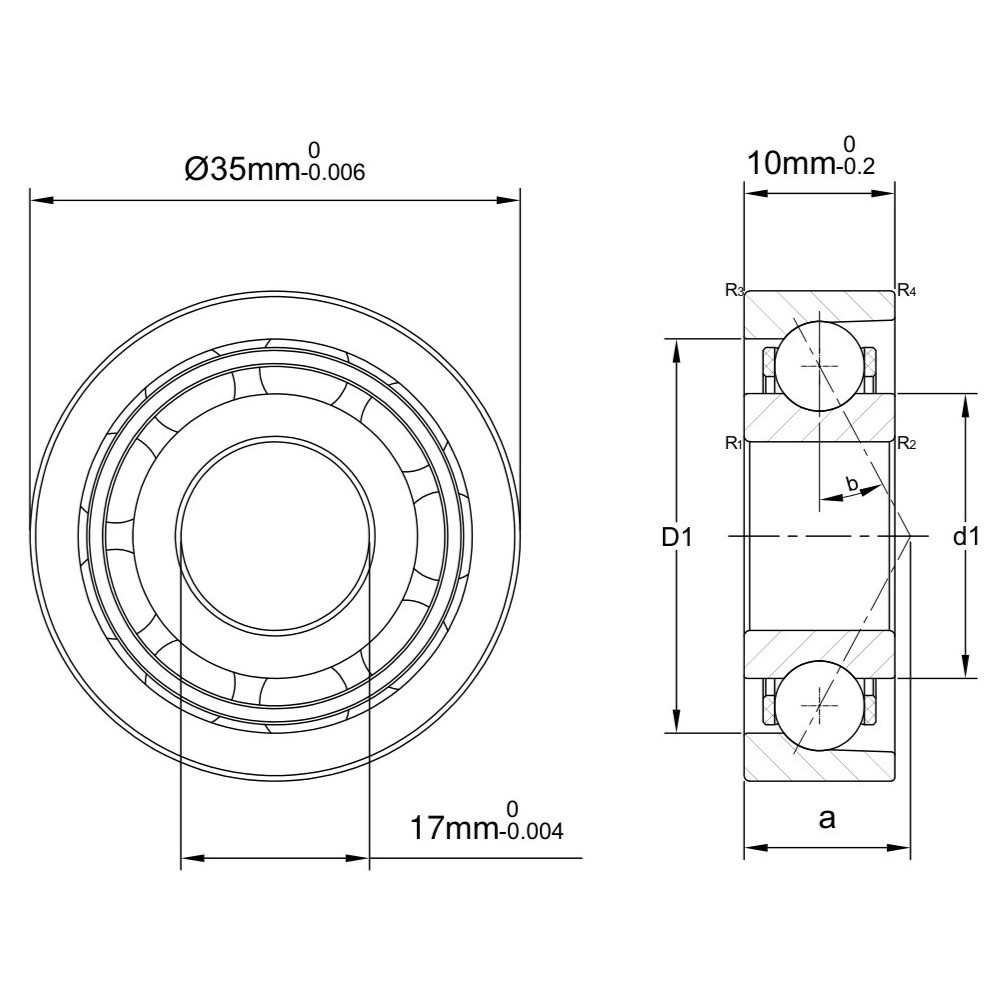

Outer dia
35mm
6.
Inner dia
17mm
7.
Width
10mm
8.
Lubricant
Grease
9.
Speed Limit
Max. 60,000
