PCB Air-Bearing 200k rpm Spindle

The PCB-200A ATC is a highly efficient machining spindle that gives a maximum speed of 200,000 rpm. The spindle prevailing AC motor and front thrust bearing system deliver stability and accuracy; hence, this is an ideal choice for usage in particular CNC machine tools.

These NK Spindles are air-bearing spindles that have unmatched performance and are engineered to give ultra-low error motions, extraordinary stiffness, along high-speed abilities. These front-line spindles are appropriate for applications in semiconductor manufacturing, PCB drilling, and glass grinding micro-machining of non-ferrous materials, where precision and competence are paramount.

The spindle structure is an ATC mechanism, with tool collet of 3.175mm/6mm.

Application:

CNC PCB Drilling Machine
CNC Sheet Metal Drilling
CNC Mobile Tempered Glass Engraving
CNC Mobile Body and cover Engraving
CNC Glass Epoxy Engraving
CNC Denture Machine
CNC Glass grinding
Micro-machining of non-ferrous materials

Air bearings (aerostatic bearings) use a gas film (air) to distinguish two surfaces in motion, removing the requirement for traditional lubricants and permitting frictionless movement. This tactic aids the moving parts in functioning smoothly and silently without constructing heat or undergoing wear. Thus, they are suitable for applications requiring precision and dependability, like measurement, precision machining, and semiconductor manufacturing.

These air bearing spindles' frictionless design permits enormously precise motion as well as reduced vibration, which makes them an ideal solution for applications like medical device assembly, semiconductor manufacturing, and optics.

Other features include enhanced reliability, superior quality, smooth motion and stability. The spindles are proficient of finalizing very complex tasks with ease.

High Rotational Accuracy – Bearing air films average any surface features to a low level enabling error motions of less than 0.05 um TIR to be achieved.
Low Vibration – All air spindles are balanced to better than 0.001 gm cm.
High Dimensional Stability – Low bearing friction and water cooling enables negligible thermal growth to be achieved.
High Speeds – Again low bearing friction and the use of water cooling allow bearings to operate at extremely high surface speeds.
High Stiffness - The small clearances inherent to air bearings enables them to be designed with high static stiffness. Air bearings also enable large shaft diameters to be used which enhances the stiffness of spindle assemblies.
Increased Bearing Life – The absence of metal-metal contact ensures an unlimited bearing life provided the air supply is maintained clean and free from oil and water.
Improved Surface Finish – Due to the inherently high accuracy of rotation of air bearings and low vibration, air spindles use in machining applications can produce surfaces with mirror finishes.
Cleanliness – Not requiring any liquid lubricants air spindles are suitable for use in clean rooms.
Ease of Maintenance – Air spindles do not require servicing. Air supplies must however be maintained.

Model	PCB-200A	Speed range（ rpm）	20,000-200,000
（ V） Voltage Range	215	Frequency Range（ Hz）	334-3,334
Max Currency（ A）	3.0	Max. Power （ Kw）	0.85
Bearing Type	Air Bearing	（ Kg） Spindle Weight	3.9
No.	Parameter	Value
1	Static Run-out（ µm）	≤2.0
2	Dynamic Run-out（ µm）	≤8.0
3	Vibration（ mm/s)	≤１.0
4	Spindle inner cone runout （ µm）	≤１ .0
5	Axial load test（ kgf）	≥22
6	Radial load test（ kgf）	10
7	Motor winding insulation grade	≥500MΩ(H Grade ）
8	Motor winding withstand voltage test	1500V/1min Withstand voltage test

9	（ Ω） Power line resistance	2.5±0.2
10	（ KΩ）Temperature sensor resistance	R≤100（ At 25℃ ）
11	（℃） Coolant temperature scope	20±2
12	Coolant pressure (MPa)	0.3≤P≤0.5
13	（ L/min） Cooling water flow	≥2.8
14	（ L/min）Cooling oil flow	≥3.0
17	(kgf/cm²) Spindle working air pressure	5.6--6.5
18	（ L/min） Air flow for spindle	88-94（ At 0.6 MPa ）

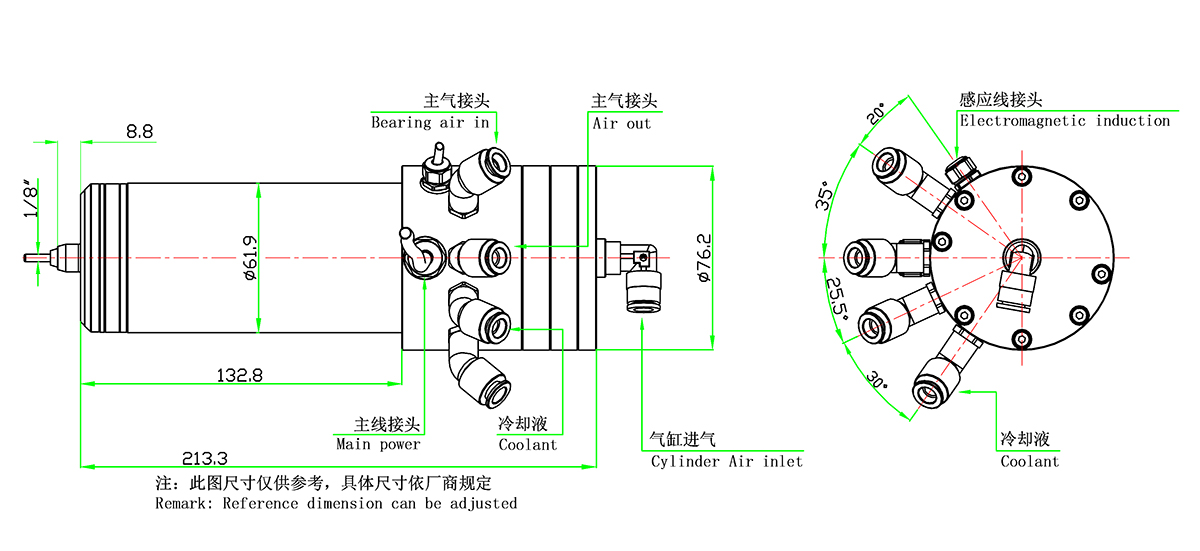

Model no. PCB-200A
