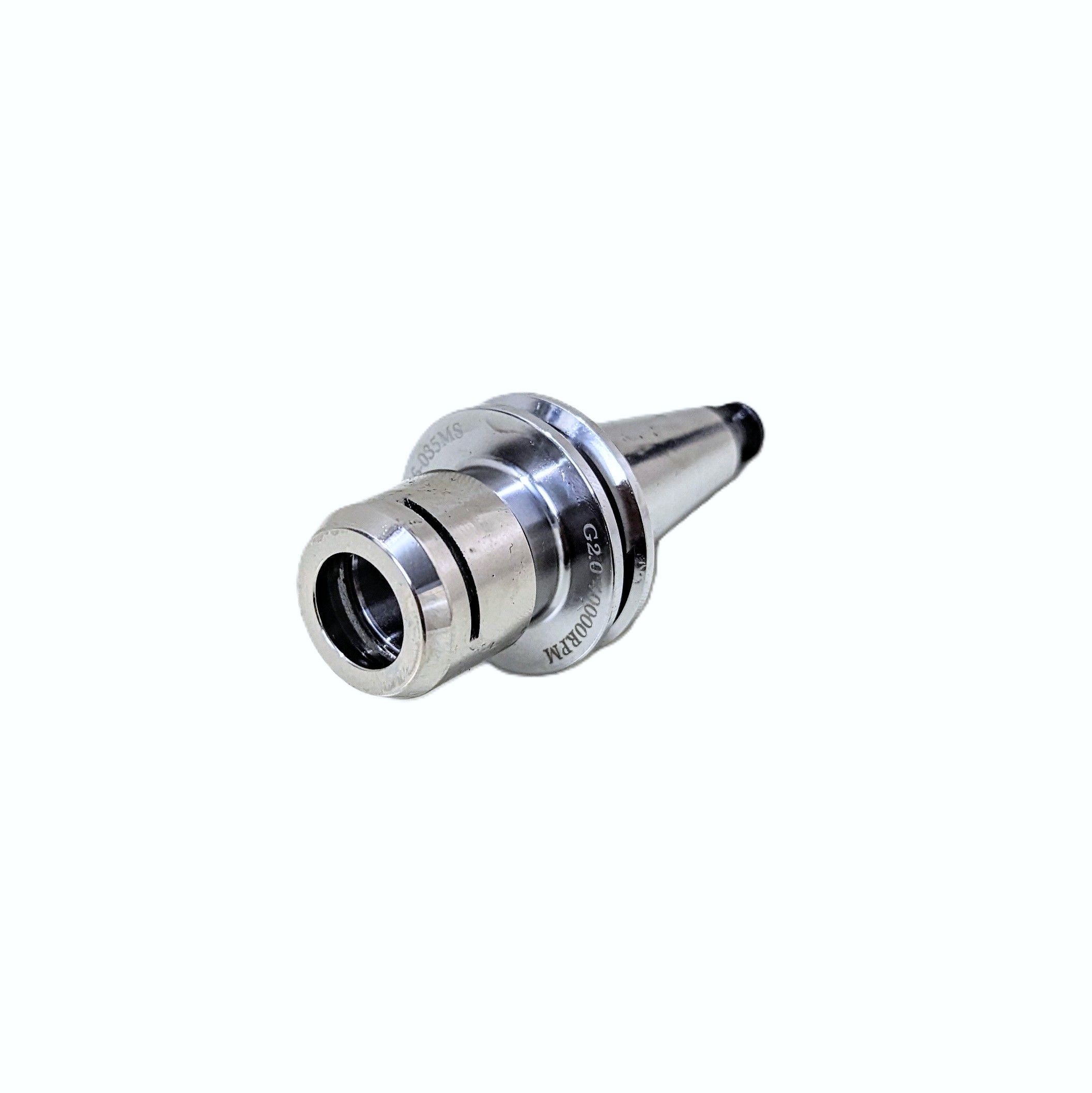

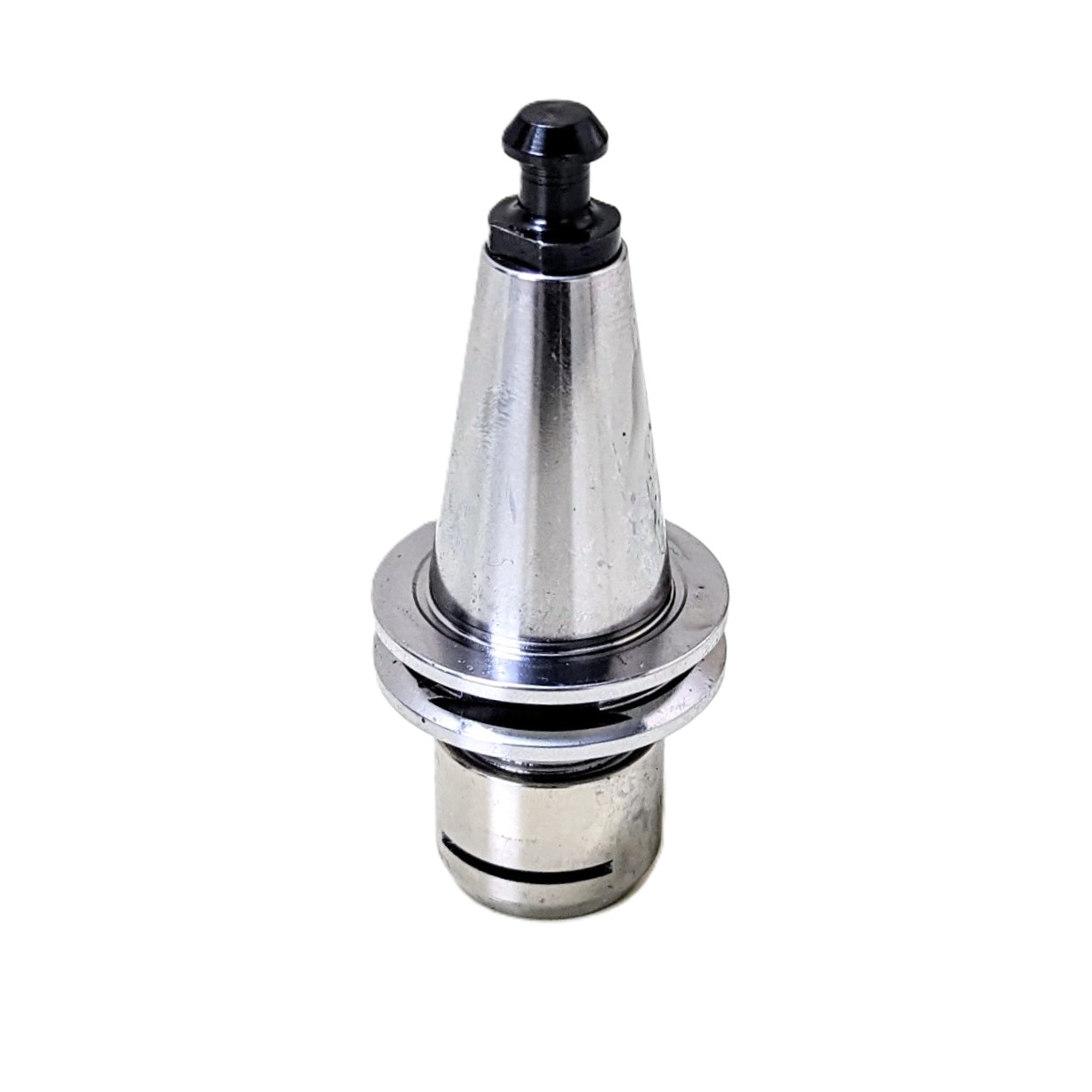

iso20 holders

Model no. ISO20-ER16-35MS

NK Engineering Services is a supplier of high-quality, High Precision, highly balanced ISO20 Holders for ATC spindle motors, specifically designed for 80mm ISO 20 ATC spindles.

Application:

CNC ATC Spindle
CNC MTC Spindle
Drilling spindle
Engraving spindle
Grinding spindle

NK Engineering Services offers a range of premium quality ISO20 Holders.

Premium Quality
It gives machine premium look
Standard size as per Industry
Quick Installation
Light Weight
Easy replacement

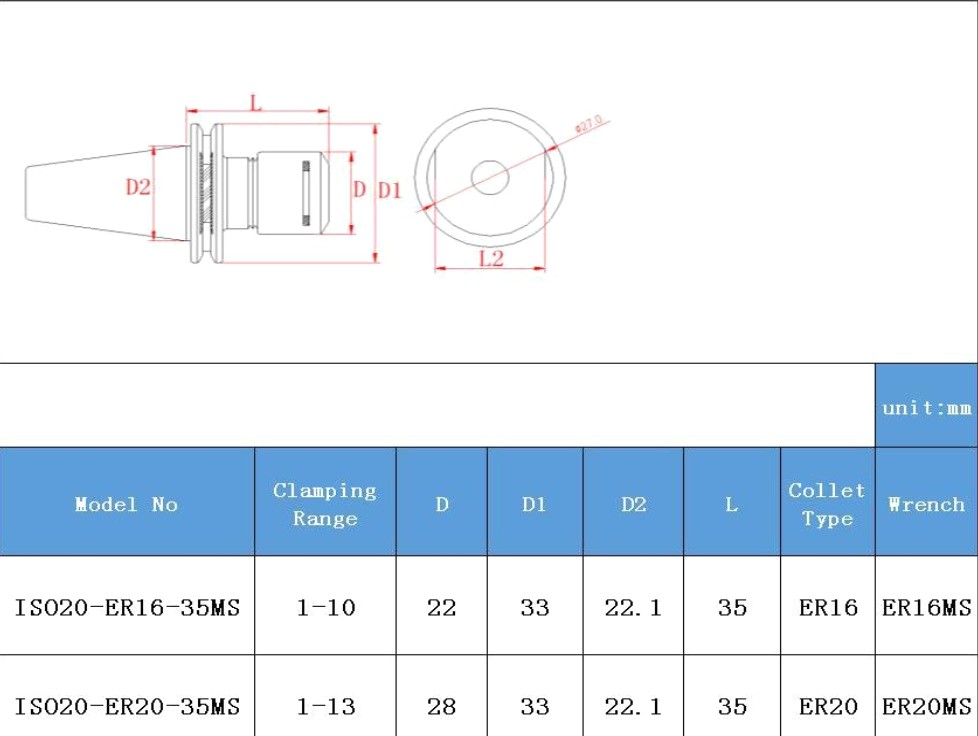

S.no.	Parameter	Value
1.	Model no.	ISO20-ER16-35MS
2.	Material	4Cr13 Stainless Steel
3.	Hardness	HRC51-53
4.	Clamping range(mm)	1 - 10
5.	Accuracy	0.001mm
6.	Balancing	G2.0
7.	Suitable wrench	ER16MS
8.	Suitable Collet	Er16
9.	Weight(kg)	0.16kg

ISO20 Holders

Model no. ISO20-ER16-35MS
