NK Engineering Services is a supplier of high-quality, High Precision, highly balanced HSK-25E Holders for ATC spindle motors, specifically designed for 80mm HSK-25E ATC spindles.
Application:
CNC ATC Spindle
CNC MTC Spindle
Drilling spindle
Engraving spindle
Grinding spindle
Share:
NK Engineering Services offers a range of premium quality HSK-25E Holders.
Premium Quality
It gives machine premium look
Standard size as per Industry
Quick Installation
Light Weight
Easy replacement

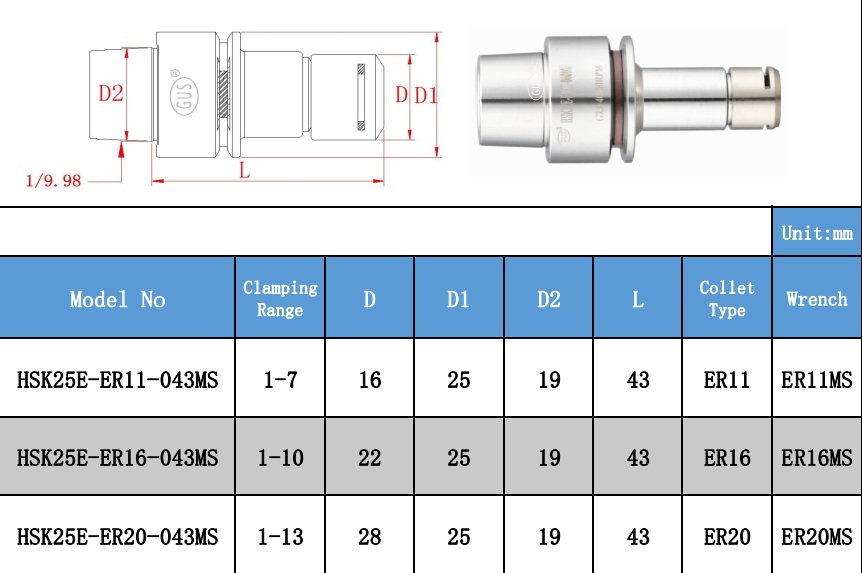

S.no.
Parameter
Value
1.
Model no.
HSK25E-ER16-043MS
2.
Material
4Cr13 Stainless Steel
3.
Hardness
HRC51-53
4.
Clamping range(mm)
1 - 10
5.
Accuracy
0.001mm
6.
Balancing
G2.0
7.
Suitable wrench
ER16MS
8.
Suitable Collet
Er16
9.
Weight(kg)
0.11kg
