Hollow Rotary Right Angle Gearbox

HRT130

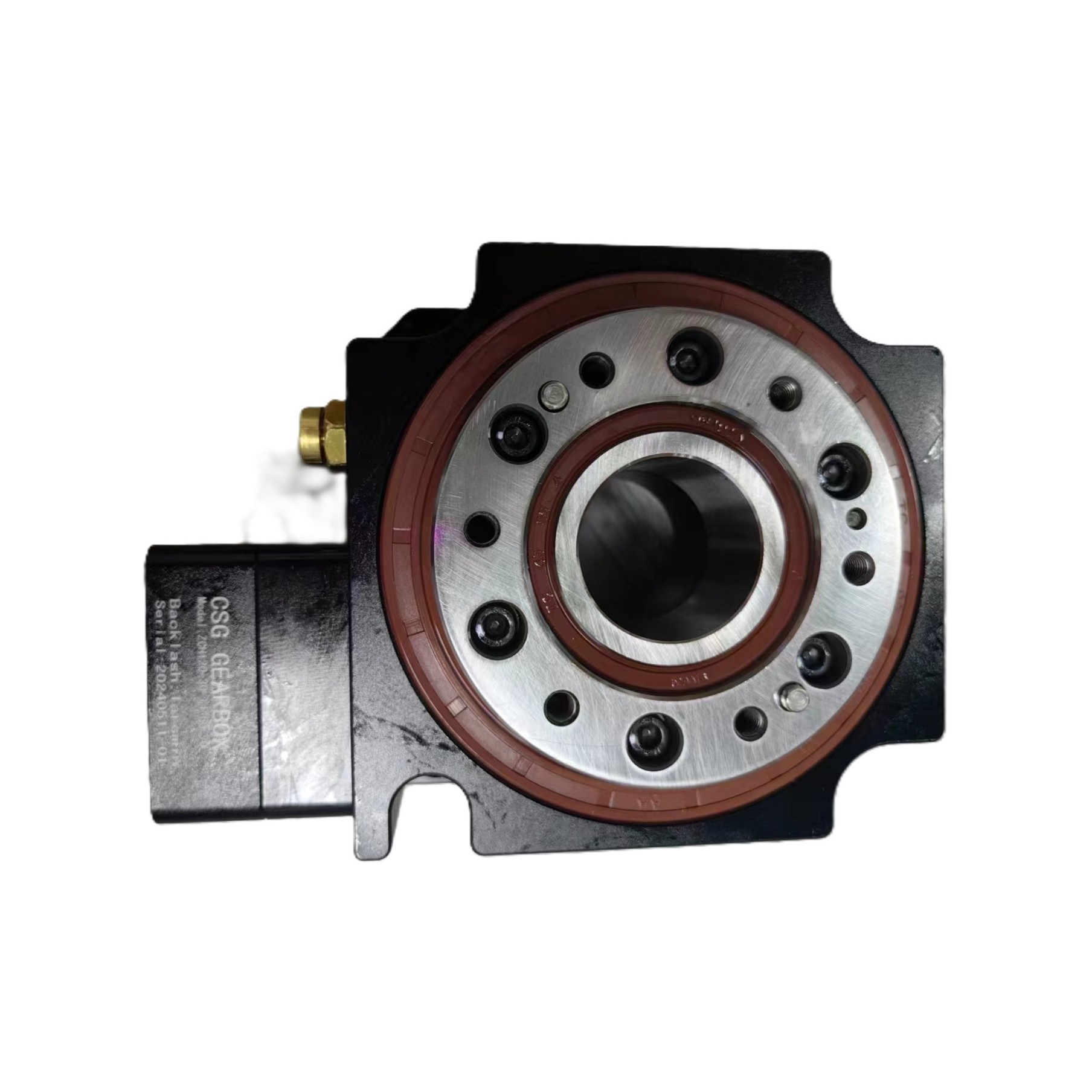

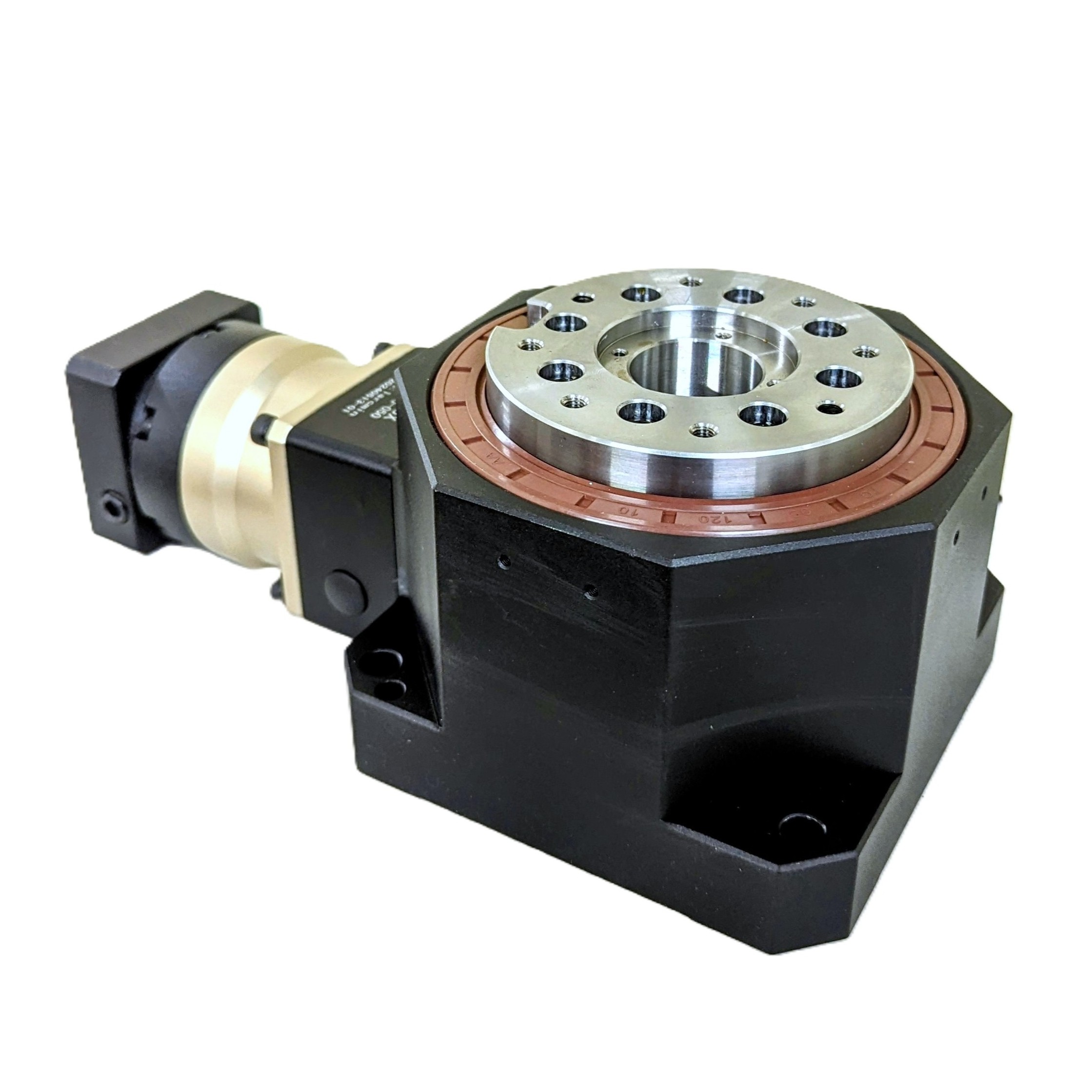

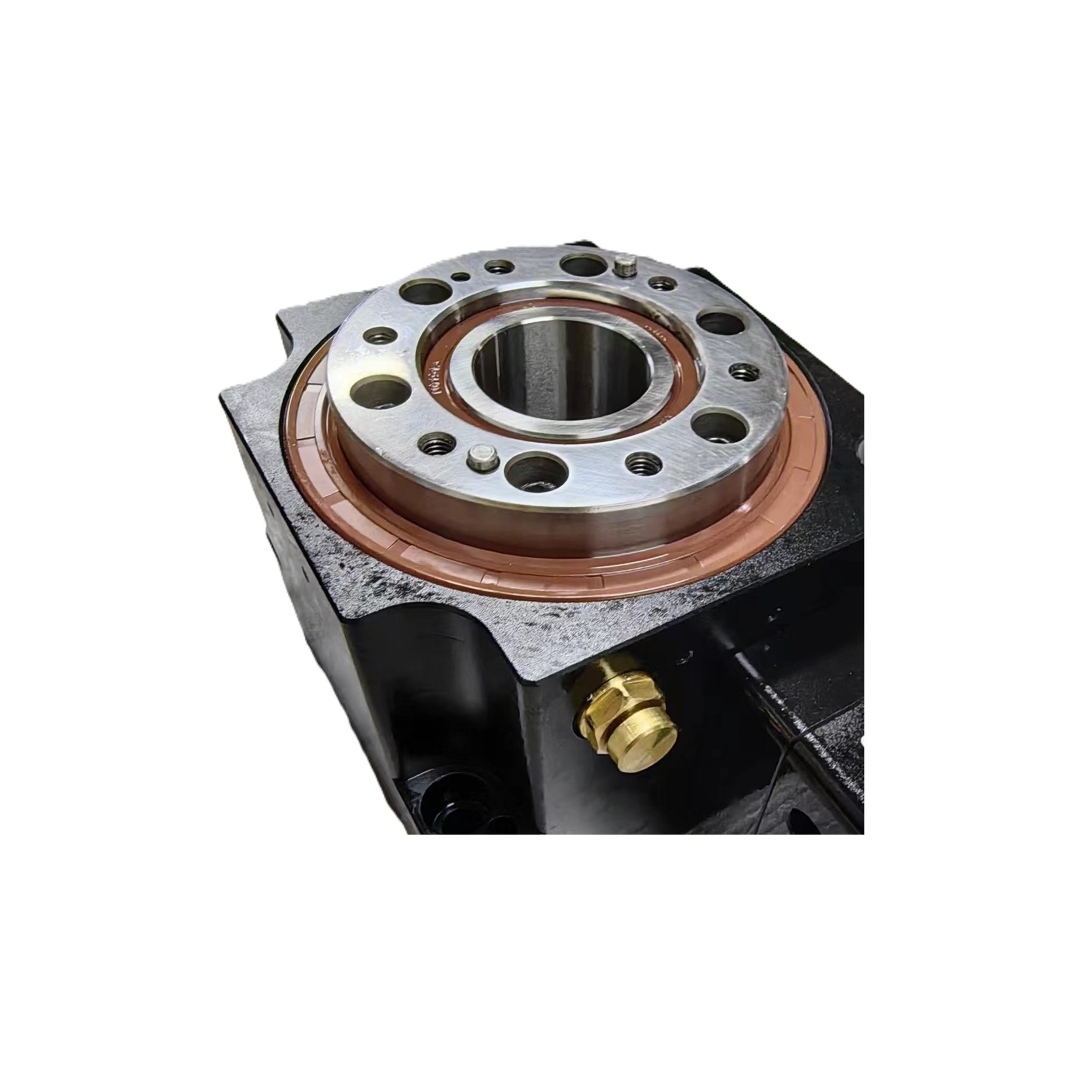

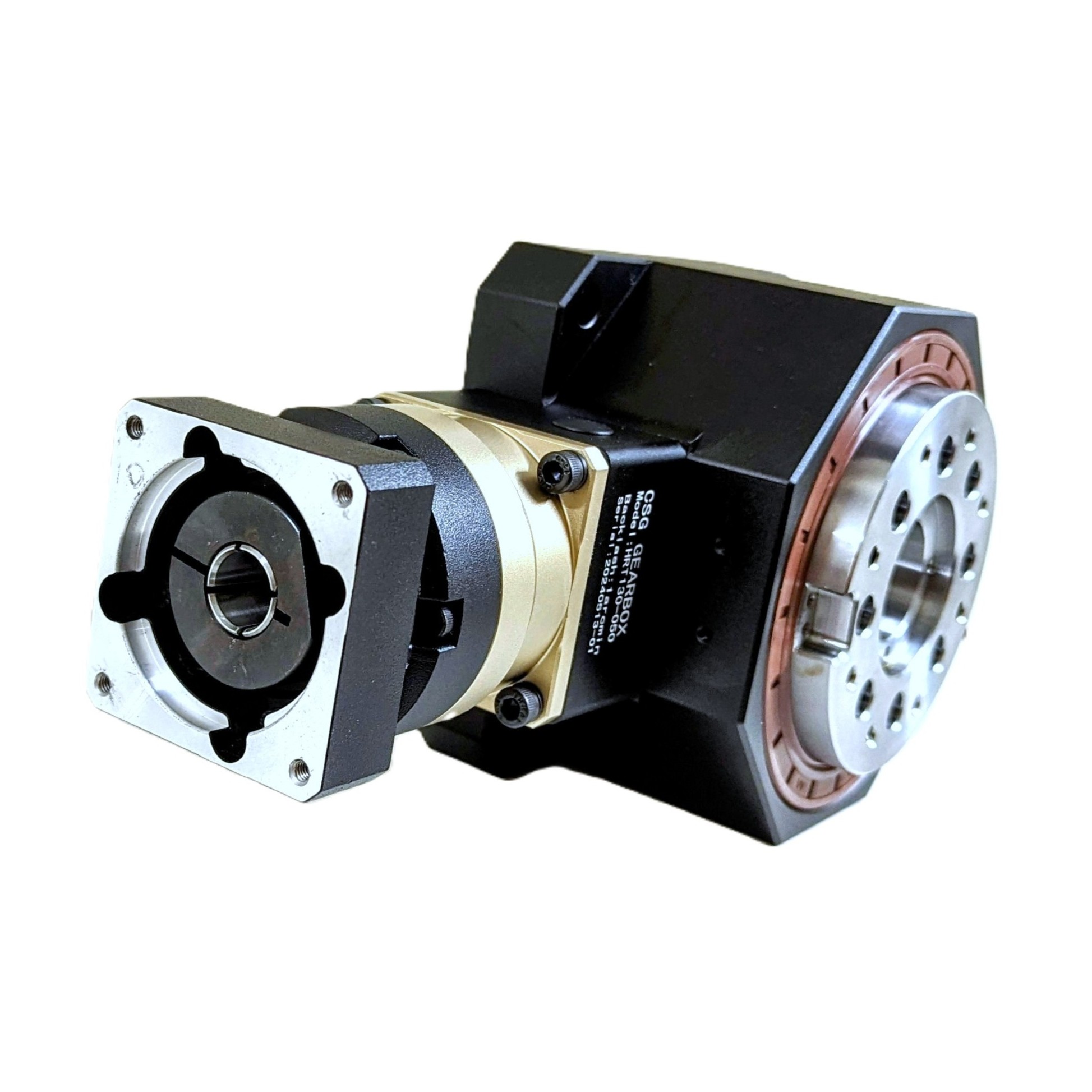

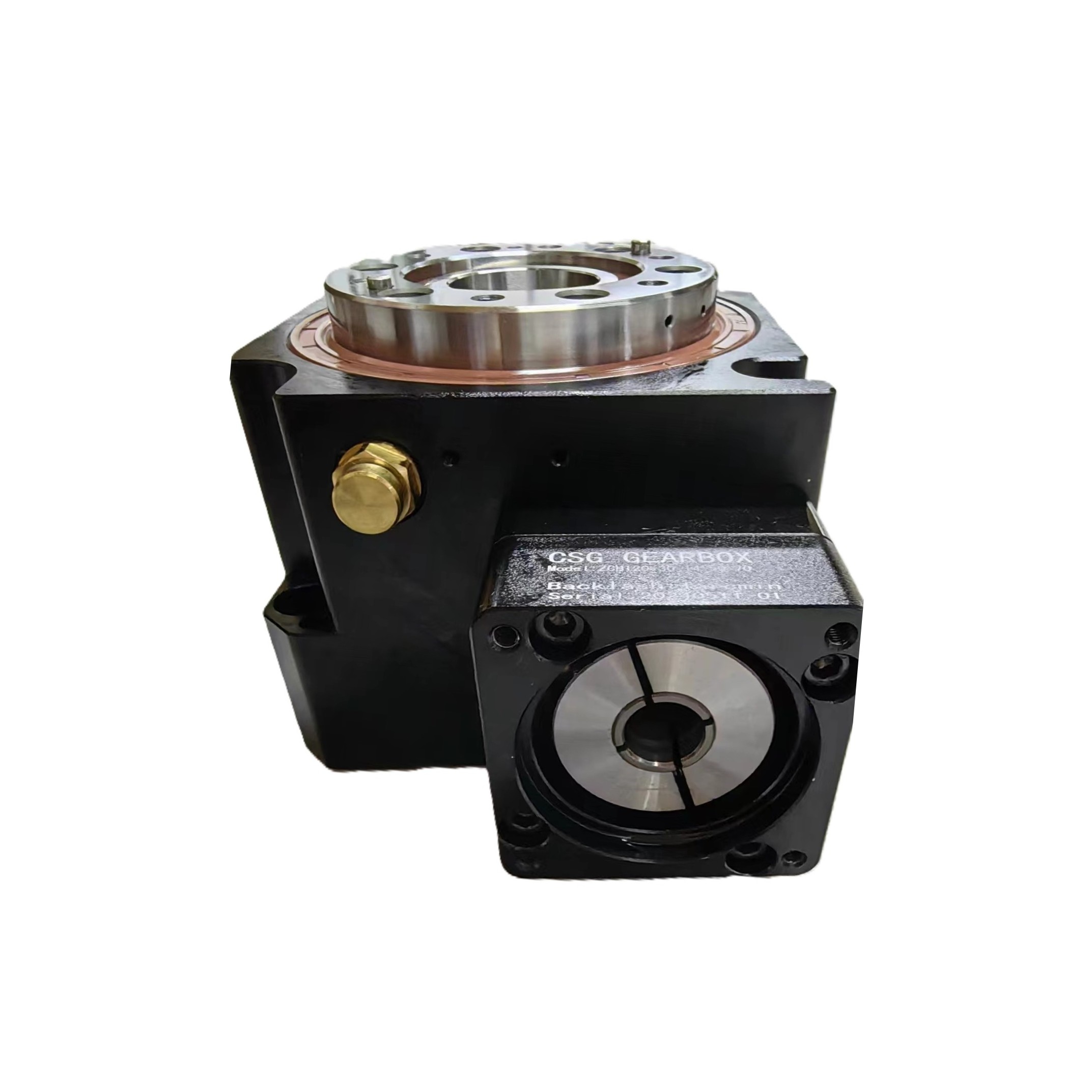

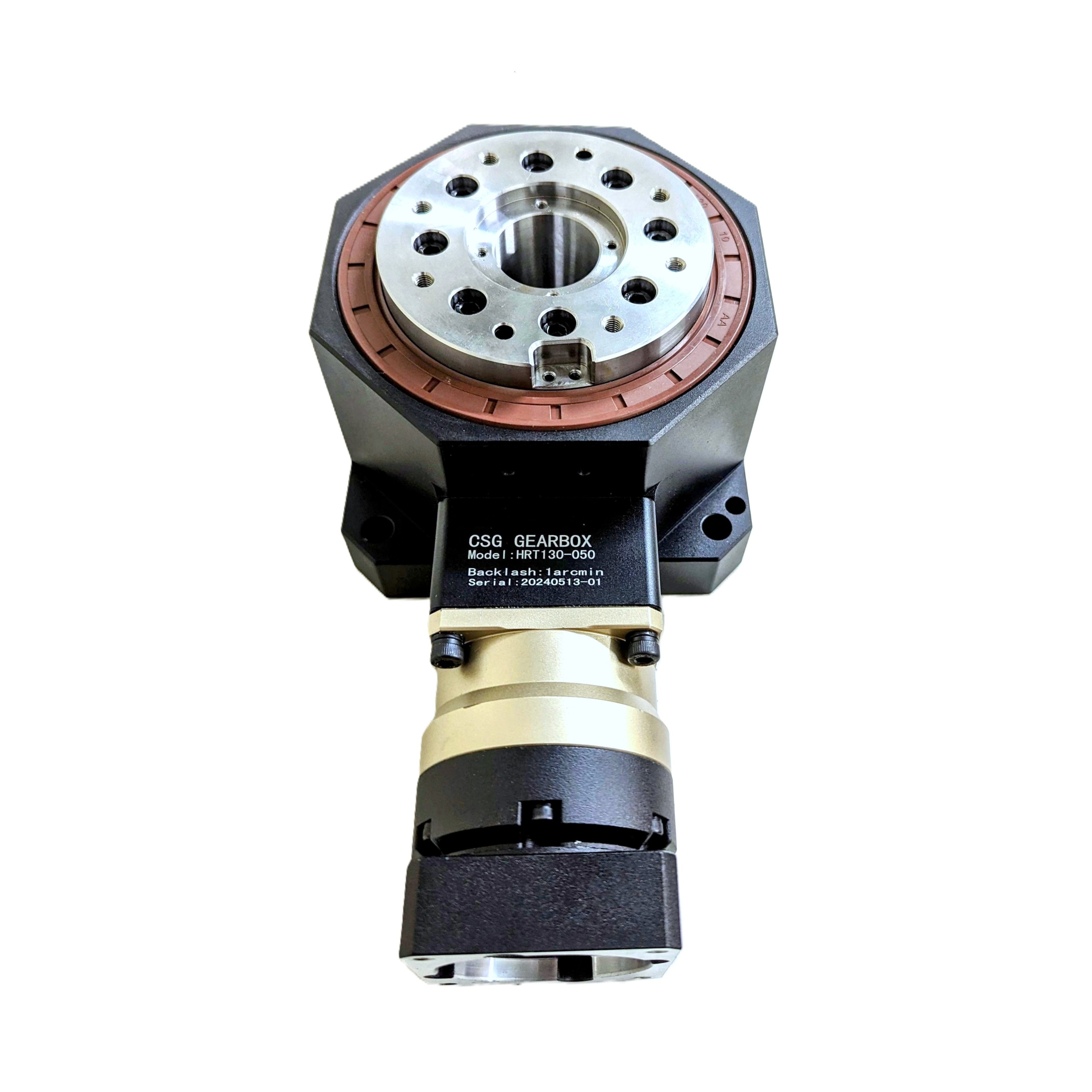

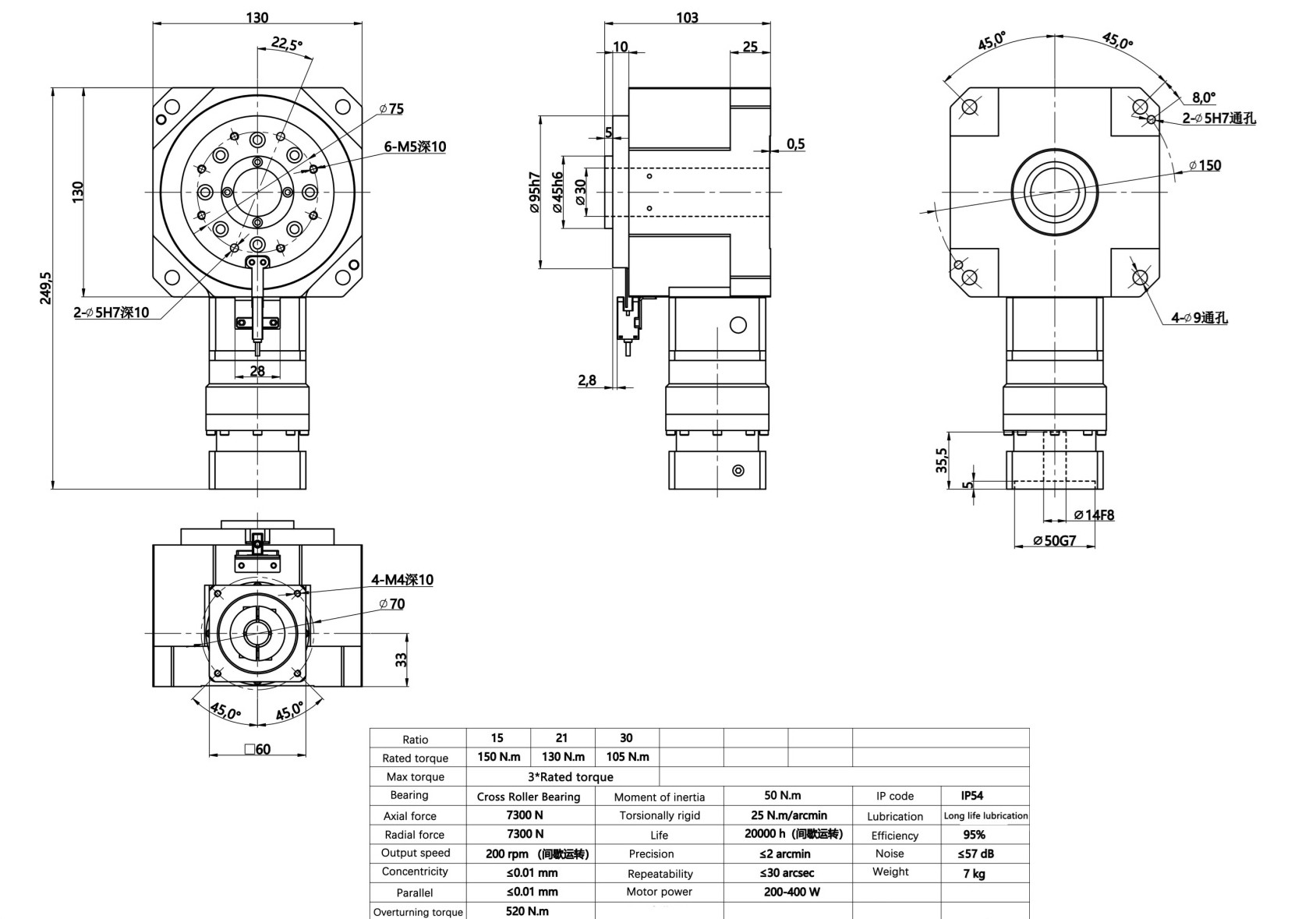

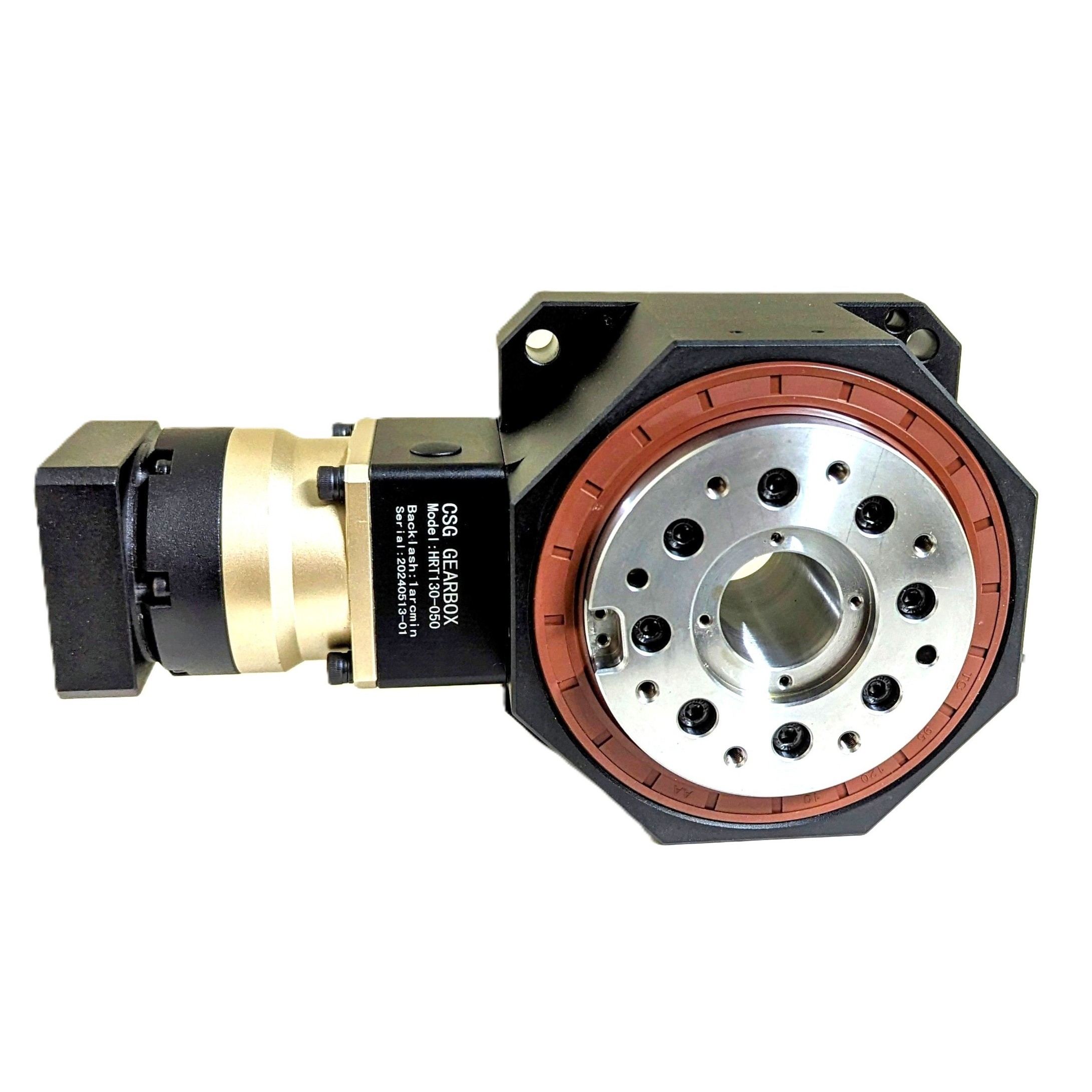

ENGINEX hollow rotary table is built with a compact, rigid frame that delivers high torque capacity and precise positioning with minimal noise. Its design allows accurate angle control and supports direct load mounting through the hollow platform. By incorporating a multi‑stage gear transmission, the system achieves enhanced output torque and offers multiple speed ratios within the same unit. The motor is positioned at a 90‑degree angle to the rotating surface, optimizing space usage and solving installation challenges in height‑restricted environments. Compatible with a wide range of servo and stepper motors, this rotary table provides versatile integration for CNC machinery, automation, and optical applications.

Application:

• CNC machine in Rotating axis, Rotary axis
• Applications subject to changing load inertia, such as Indexing Plate;
• Applications where a moment load is applied, such as Pick and Place System; optical applications;
• Highly accurate positioning applications, such as Material Handling Machine and Positioning Platform.
• Use in manufacturing, inspection, positioning, research, tracking.
• Medical applications.

Distinctiveness:

• Nominal output torque: 150 Nm to 2950 Nm
• High precision positioning without backlash
• No backlash, positioning accuracy ≤ 1min, repeated positioning accuracy can reach ± 5 arc seconds
• Direct attachment with simple and reliable design.
• Large hollow rotary table for concise wiring and piping.
• Accurate and fast positioning.
• Large hollow rotary flange-hollow bore for wiring or shafts.

• Flange rotates on precision high capaci
• y crossed roller bearing for positional accuracy.
• Rigidity and heavy axial loads.
• Larger reduction ratios achievable by inputting with a planetary or right-angle gearhead.
• Mostly used for Indexing Table or Rotary Table Applications.
