ENGINEX CNC harmonic gearbox, robotic arm gearbox, harmonic drive, gear, bangle gearbox

EGX-17

ENGINEX Harmonic Gear Reducers are engineered to deliver exceptional precision, zero backlash, and high torque density in a compact, lightweight design. Designed for demanding motion control applications, our gear reducers provide outstanding positioning accuracy, repeatability, and long-term reliability.

Each harmonic gearbox consists of three key components:

Flexspline – A flexible, thin-walled spline that enables smooth torque transmission.
Circular Spline – A rigid internal gear with a precisely engineered tooth profile.
Wave Generator – An elliptical bearing assembly that flexes the flexspline, creating the unique harmonic drive mechanism.

The controlled deformation of the flexspline, combined with the slight difference in the number of teeth between the flexspline and the circular spline, produces high reduction ratios with virtually zero backlash. This design ensures smooth, accurate motion and excellent torque transmission, making ENGINEX harmonic gear reducers ideal for high-precision applications.

We offer a comprehensive range of harmonic gear reducers in multiple sizes and reduction ratios to meet the specific requirements of machine tools, CNC equipment, robotics, automation systems, semiconductor machinery, packaging equipment, medical devices, and other precision motion control applications.

Key Features

Zero backlash for superior positioning accuracy
High torque density in a compact design
Excellent repeatability and precision
High reduction ratios in a single stage
Smooth, quiet, and efficient operation
Long service life with minimal maintenance
Available in various sizes and gear ratios to suit diverse applications
Applications:
Suitable for a robot arm
CNC Bangle Machine
CNC machine in a rotating axis where high torque and accuracy are required
Applied in the robot industry, especially for multi-axis robot joints

We at NK Automations are a premier supplier and manufacturer of high-precision gearboxes. Our gearboxes offer several advantages, including robust construction, heavy-duty performance, zero backlash, and high positional accuracy. Notably, we also provide after-sales services for all our products, which distinguishes NK Automations as the preferred choice for various industries such as robotics, CNC machinery, CNC bangle engraving machines, special-purpose machines (SPM), medical equipment, semiconductor manufacturing, satellite communications, and assembly automation applications.

An industrial gearbox is a sealed system that conveys mechanical energy from a servo motor to an output device. These gearboxes are capable of adjusting their speed, torque, and other characteristics to convert energy into a usable format. They are utilized across numerous machines for diverse applications. These machines can reduce rotational speed to enhance torque and speed.

Exceptional Positional Accuracy and Repeatability
Zero Backlash
High Torque – no more need of Brake Servo motor
High Efficiency
High Reduction Ratios in a Single Stage
Compact and Light Weight
High Torsional Stiffness
Fully Back Drivable
High load capacity output bearings

Model	Ratio	Rated Torque at 2000 rpm Input		Permissible Peak torque at start and stop		Permissible Maximum value average load torque		Permissible maximum momentary torque		Permissible maximum input rotational Speed	Permissible maximum input average speed	Backlash	Life
Model	Ratio	Nm	Kgfm	Nm	Kgfm	Nm	Kgfm	Nm	Kgfm	RPM	RPM	Arc-Sec	Hours
17	50	16	1.6	34	3.5	26	2.6	70	7.1	7300	3500	≤20	10000
	80	22	2.2	43	4.4	27	2.7	87	8.9				15000
	100	24	2.4	54	5.5	39	4.0	108	11				15000
	120	24	2.4	54	5.5	39	4.0	86	8.8				15000

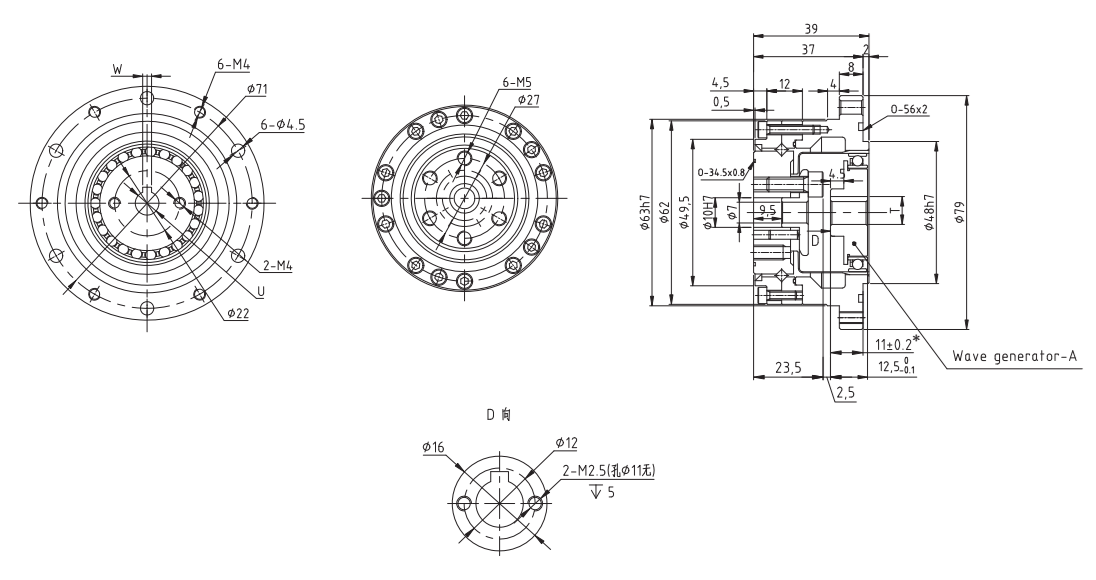

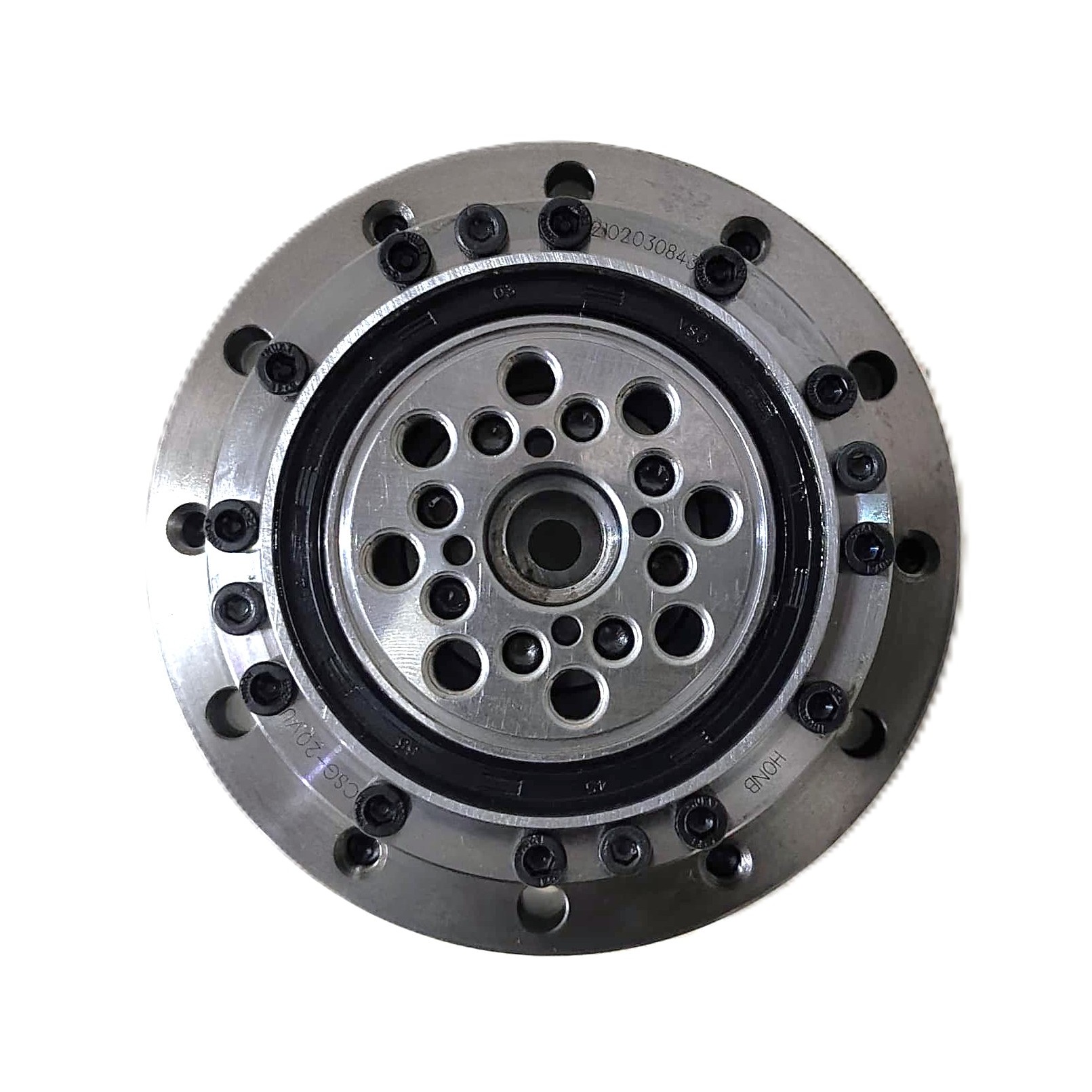

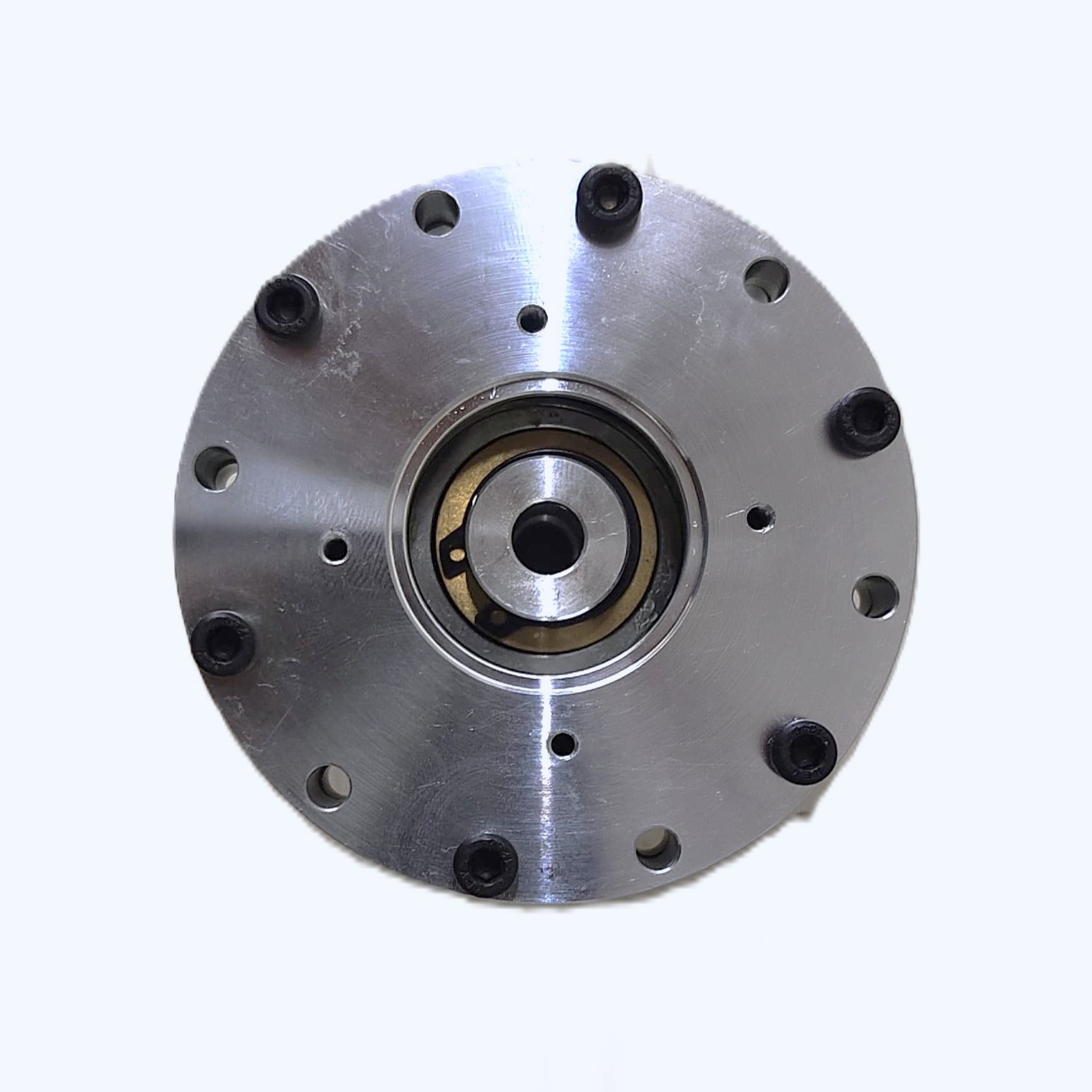

Harmonic Drive 17 Model

EGX-17
