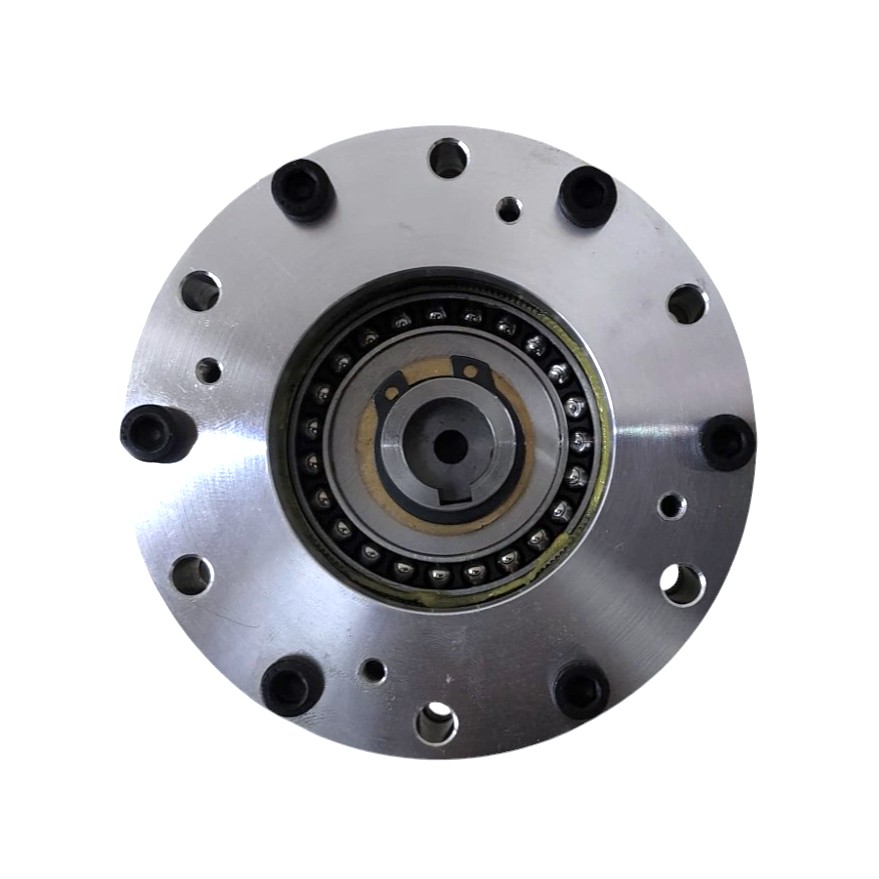

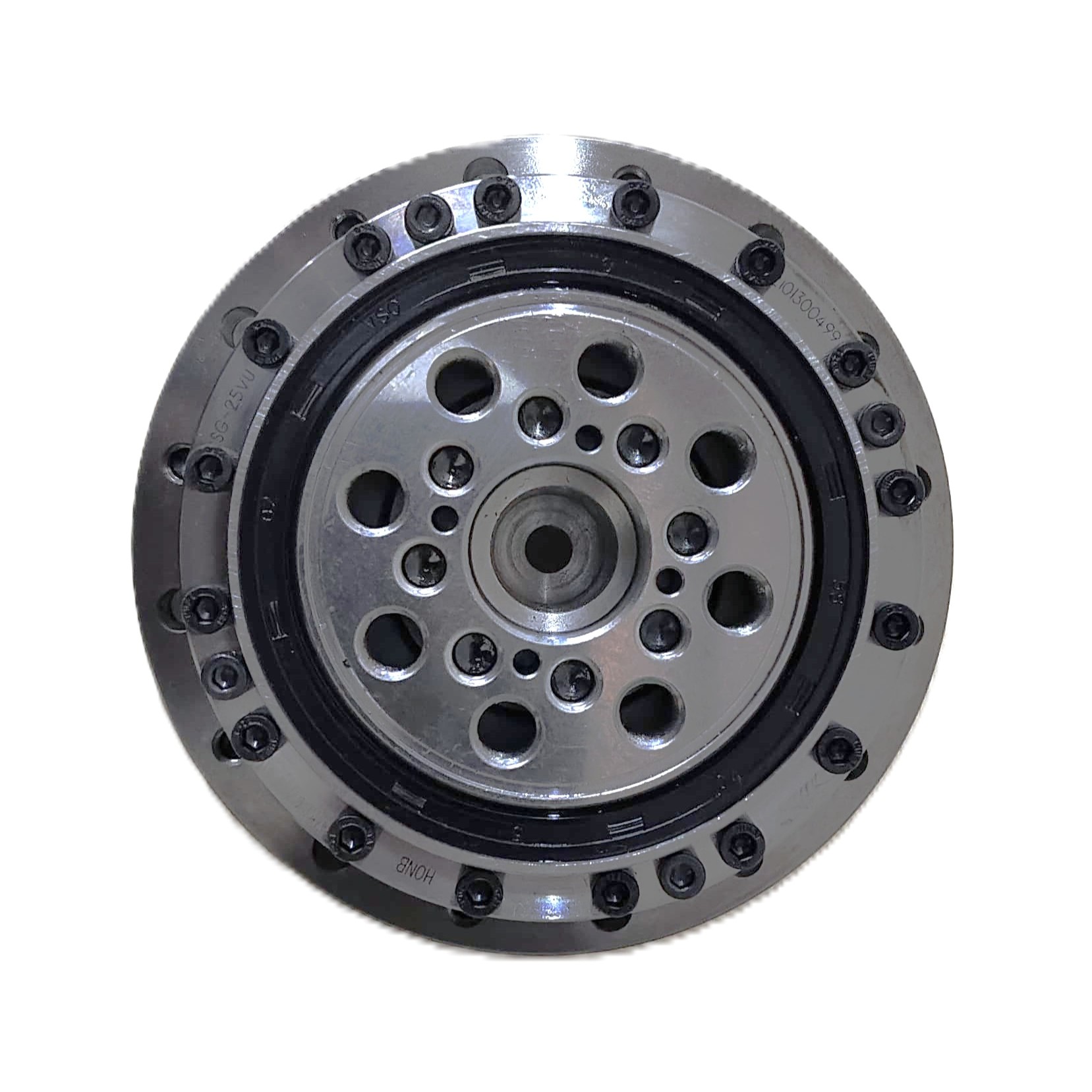

EGX-20

ENGINEX come up with compact harmonic gear reduction mechanism that achieves zero backlash, as well as exceptional positioning accuracy, torque density and repeatability. NK GEARBOXES consists of three internal elements – the flexspline, the circular spline and the wave generator. The elasticity properties of the flexspline and the teeth differential between the flexspline and the circular spline result in its unique reduction characteristics.

We have Wide range of Gear Reducers Available one can choose from as per application and machine Tool.

Available reduction ratios 1:50, 1:80, 1:100, 1:120, 1:160

Distinctiveness:

Backlash less than 20 Arc-sec
High Repeatability
Diverse appearance
Torque Capacity: 3.5Nm to 500Nm
Short axial dimension.
High rigidity for stable precision work.
More compact and higher accurate.
Light Weight
Long Life
Maintenance free

Applications:

Suitable for robot arm
CNC Bangle Machine
Cnc Machine in Rotating Axis where high torque and accuracy required
Applied in Robot Industry, especially for multi-axis robot joints

We NK Automations Leading Supplier and Manufacturer of High Precision gearboxes. The advantage of our Gearboxes is that we provide customers rigid construction, heavy-duty, zero backlash, high position Accuracy and the most important and distinctive part is that we provide aftersales services for all our gearboxes these characteristic enable NK Automations to become superior choice for Industries like, Robotics industry, CNC Machines, CNC Bangle Engraving machines, SPM, Medical Equipment, Semiconductor Manufacturing, Satellite Communications and Assembly Automation applications.

An industrial gearbox is an enclosed system that transmits mechanical energy with the help of servo motor to an output device. Gearboxes can modify their speed, torque, and other attributes to convert the energy into a useable format. Gearboxes are used in a variety of Machines, for a broad range of purposes. These machines can slow the rate of rotation to increase torque and speed.

Exceptional Positional Accuracy and Repeatability
Zero Backlash
High Torque – no more need of Brake Servo motor
High Efficiency
High Reduction Ratios in a Single Stage
Compact and Light Weight
High Torsional Stiffness
Fully Back Drivable
High load capacity output bearings

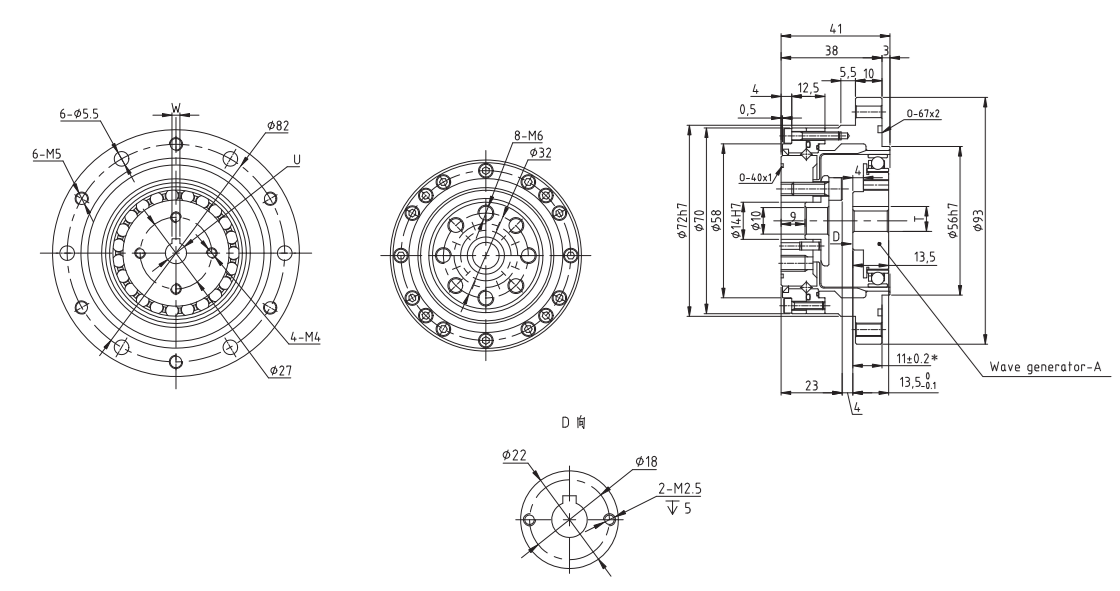

Harmonic Drive 20 Model

EGX-20
