Model no. ATC-60C

With extensive expertise in spindle motors, NK Automations offers high-frequency spindles equipped with ultra-hybrid ceramic bearings tailored for precise CNC machine applications such as CNC engraving, bangle engraving, machining of high-precision automotive components, sheet cutting, and PCB drilling and routing. This spindle is compact enough for light machinery yet powerful to accomplish demanding tasks.

Additionally, it boasts superior quality, enhanced reliability, smooth operation, and stable balancing.

The spindle design includes a rapid automatic tool change system, with the tool holder conforming to 6mm or 3.175mm

Our 1.8 kW high-frequency spindle operates at 60,000 RPM and features robust construction that ensures high precision while meeting industry standards. Notably, our spindle motors are characterized by exceptional overload capabilities and a wide operational speed range, delivering outstanding dynamic performance.

Application:

CNC PCB Drilling Machine
CNC Sheet Metal Drilling
CNC Bangle Engraving
CNC Mobile Tempered Glass Engraving
CNC Mobile Body and Cover Engraving
CNC Glass Epoxy Engraving
CNC Denture Machine
CNC Aluminium Drilling
CNC Glass grinding
In Robotics arm for machining automobile Components

With a streamlined design that promotes rapid operation and minimal noise, NK Automation's CNC machine spindles are engineered for both efficiency and durability. These spindles are compact enough to be utilized with lightweight equipment while still providing the necessary power for a variety of applications. Capable of reaching speeds up to 60,000 rpm, they offer customizable motor power tailored to specific requirements and maintain a static runout of ≤2.0μm. This makes them ideal for tasks such as CNC bangle engraving, sheet cutting, PCB drilling and routing, denture manufacturing, and mobile cover production.

Moreover, these spindles are distinguished by their superior quality and dependability, facilitating smooth operation and stable balancing. They are particularly adept at managing intricate tasks.

Exceptional Accuracy:** Dynamic precision is less than 8 μm, static precision is below 2 μm, and shaft rotation runout measures under 1 μm.
Compact Design:** Features a small size, minimal inertia, and reduced heat variations.
Balance Classification:** Rated at G0.4 with low vibration levels and minimal noise production.
Advanced Configuration:** Includes a rapid automatic tool change (ATC) system, an optional temperature sensor, and ultra-precise ceramic ball bearings.
Reliability:** Designed for low failure rates due to its precision construction, straightforward design, and ease of maintenance.
Dust and Water Resistance:** The spindle's front end utilizes a multi-layer labyrinth structure to enhance dust sealing and waterproof capabilities.
Robust Rigidity:** The built-in motor integrates the front bearing seat with the spindle, significantly enhancing overall rigidity and coaxial accuracy.

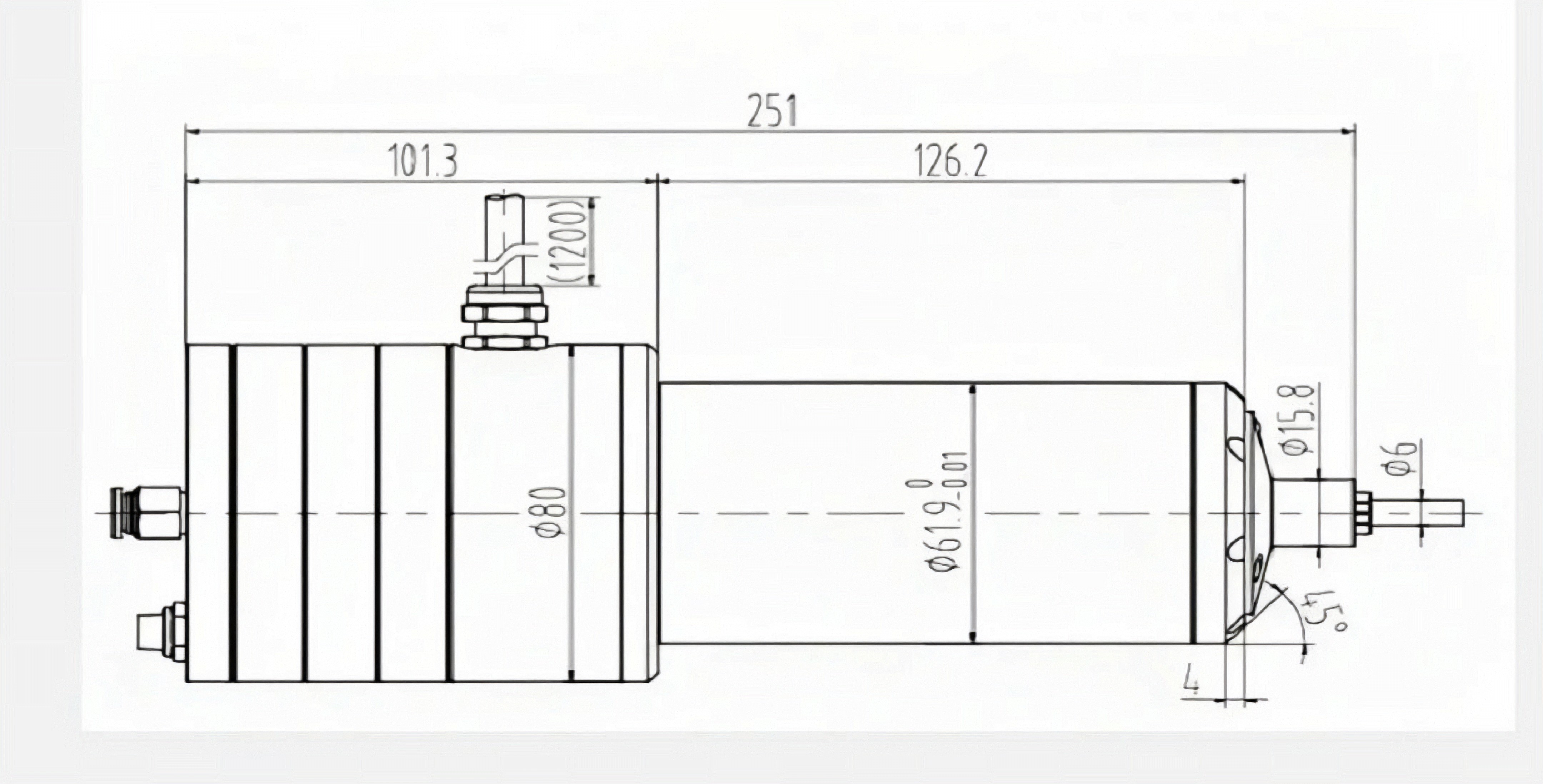

Specification

Model no.	ATC-60C	Speed range(rpm)		60,000
Voltage range(V)	220	Frequency(Hz)		1000
Max. Current(A)	5	Max Power(Kw)		1.8
Bearing type	GMN Ceramic Bearings(4)	Spindle weight（kg）		4.6
Item	Technical Parameter

1	Static Runout（μm）		≤2.0
2	Dynamic Runout（μm）		≤8.0
3	Vibration（mm/s）		≤1.0
4	Torque（N.cm）		382
5	Collet Size		3.175mm/6mm
6	Cooling water temperature（℃）		20±2
7	Cooling water flow（L/min）		≥1.2
8	Cooling oil flow（L/min）		≤3.0
9	Cooling oil temperature（℃）		20±2
10	Collet type		ATC
11	Spindle Air pressure（kgf/cm²）		1.0-1.5
12	Spindle Air flow（L/min）		48—54（at 2kg/cm²）
13	Cooling system pressure kgf/cm）		2.0-4.0

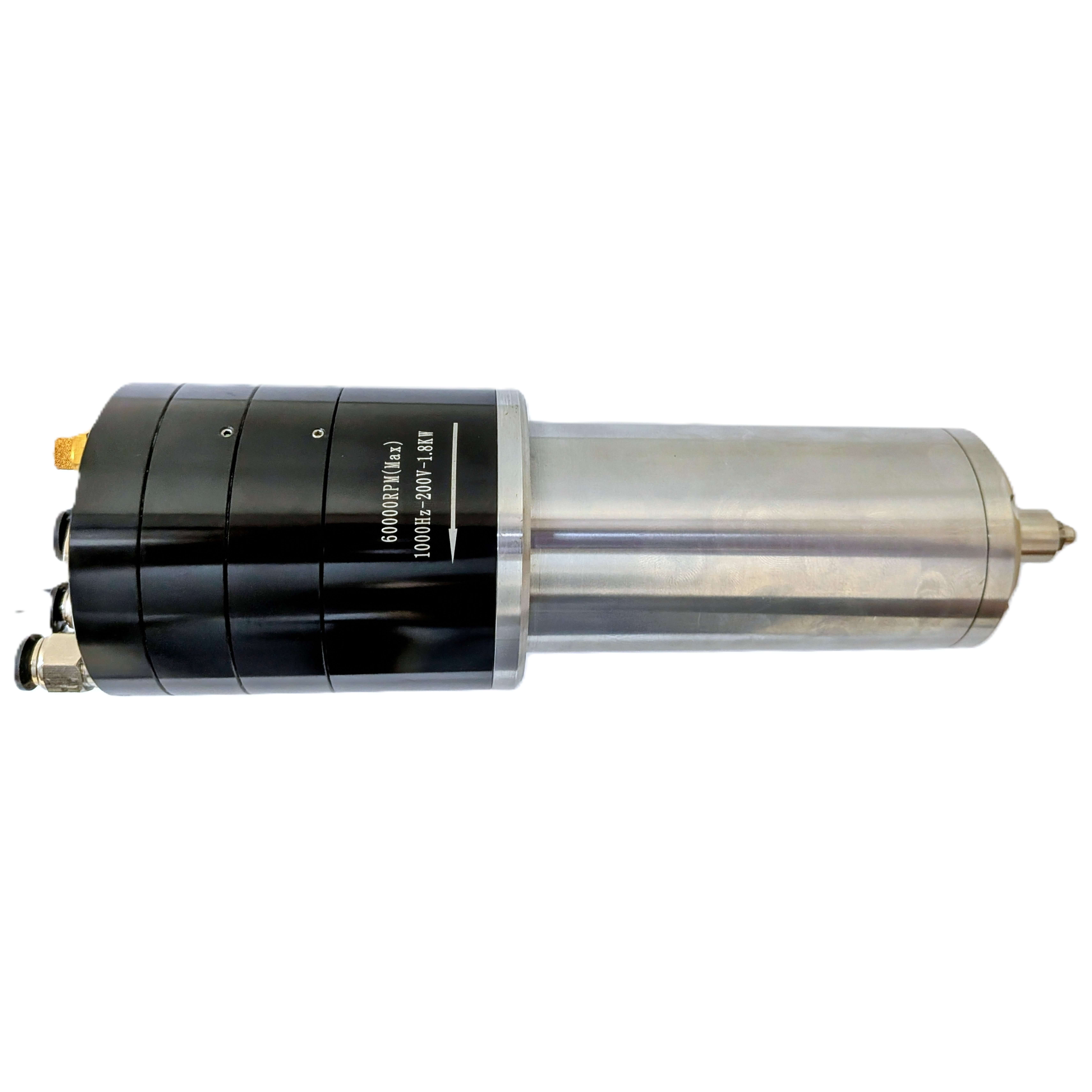

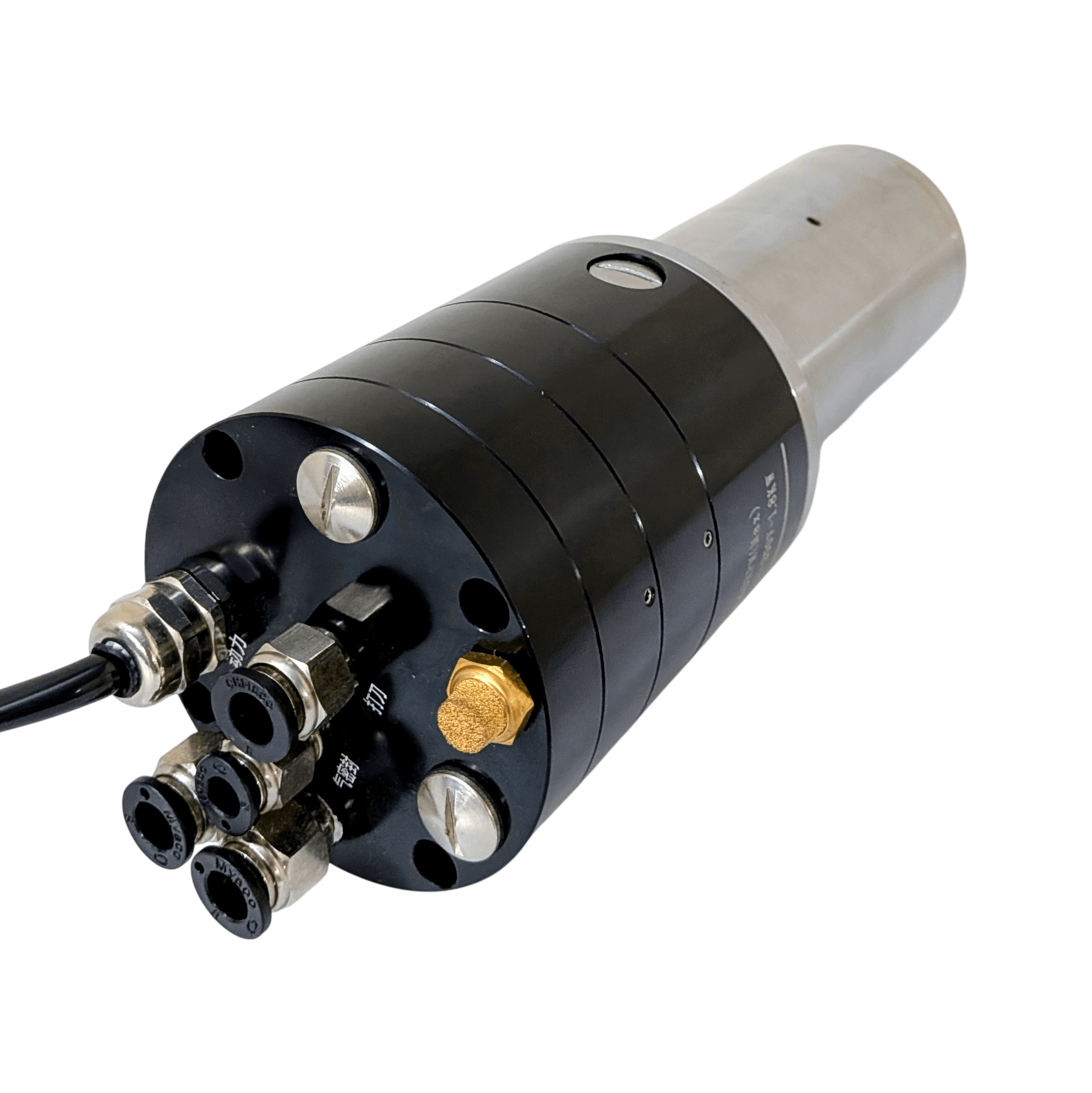

CNC ATC 1.8kw 60k rpm Spindle Motor(short body)

Model no. ATC-60C
