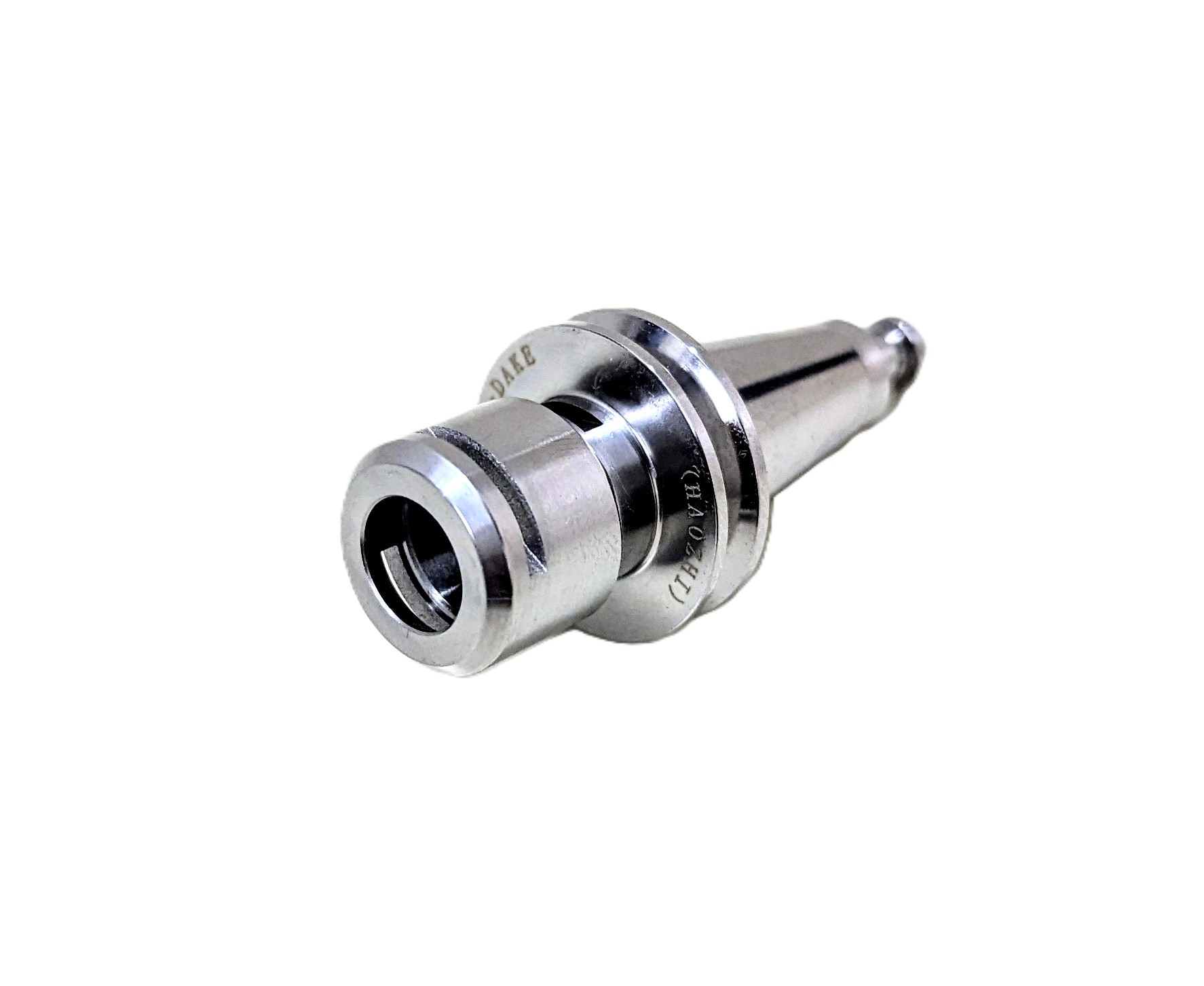

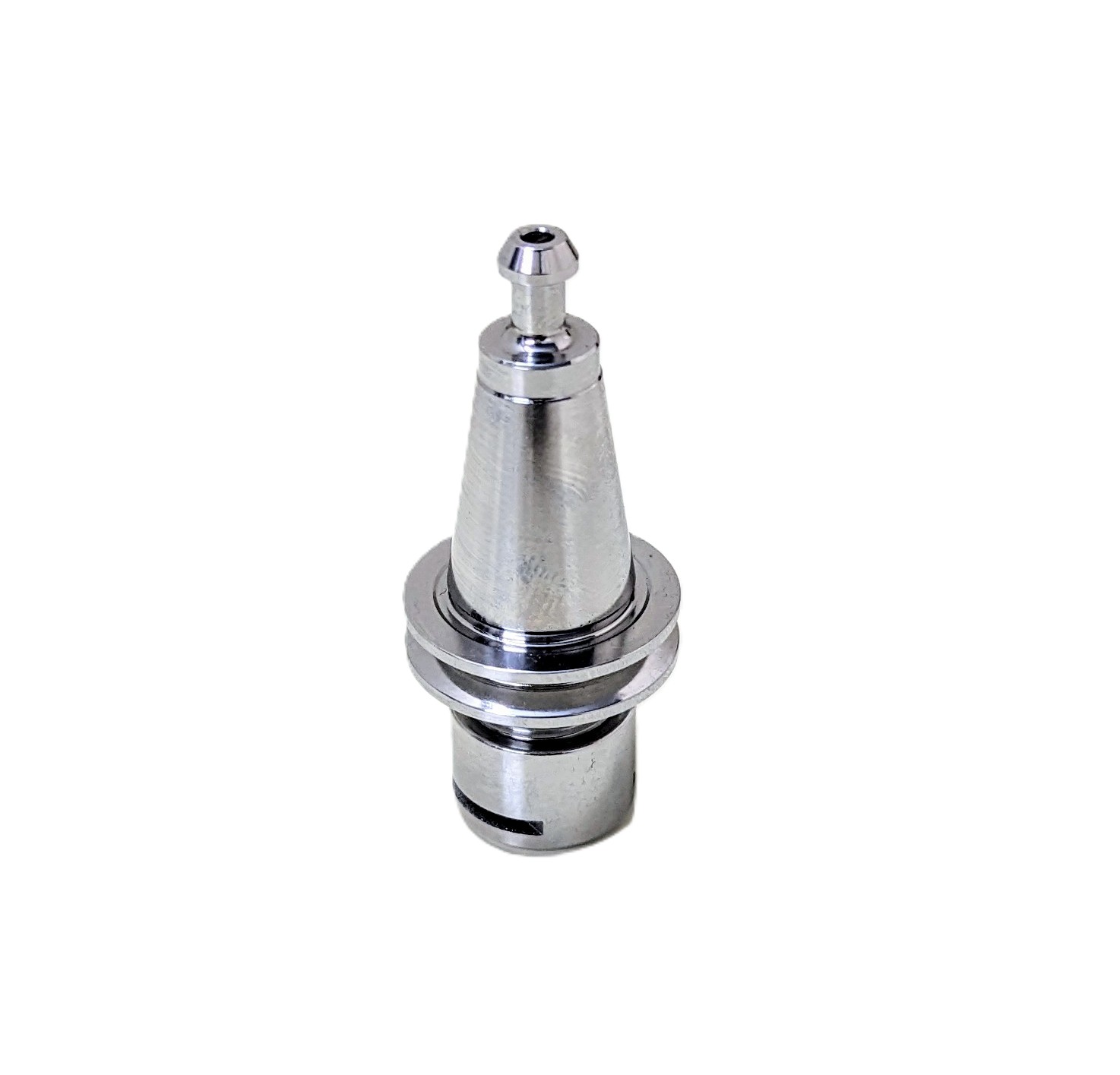

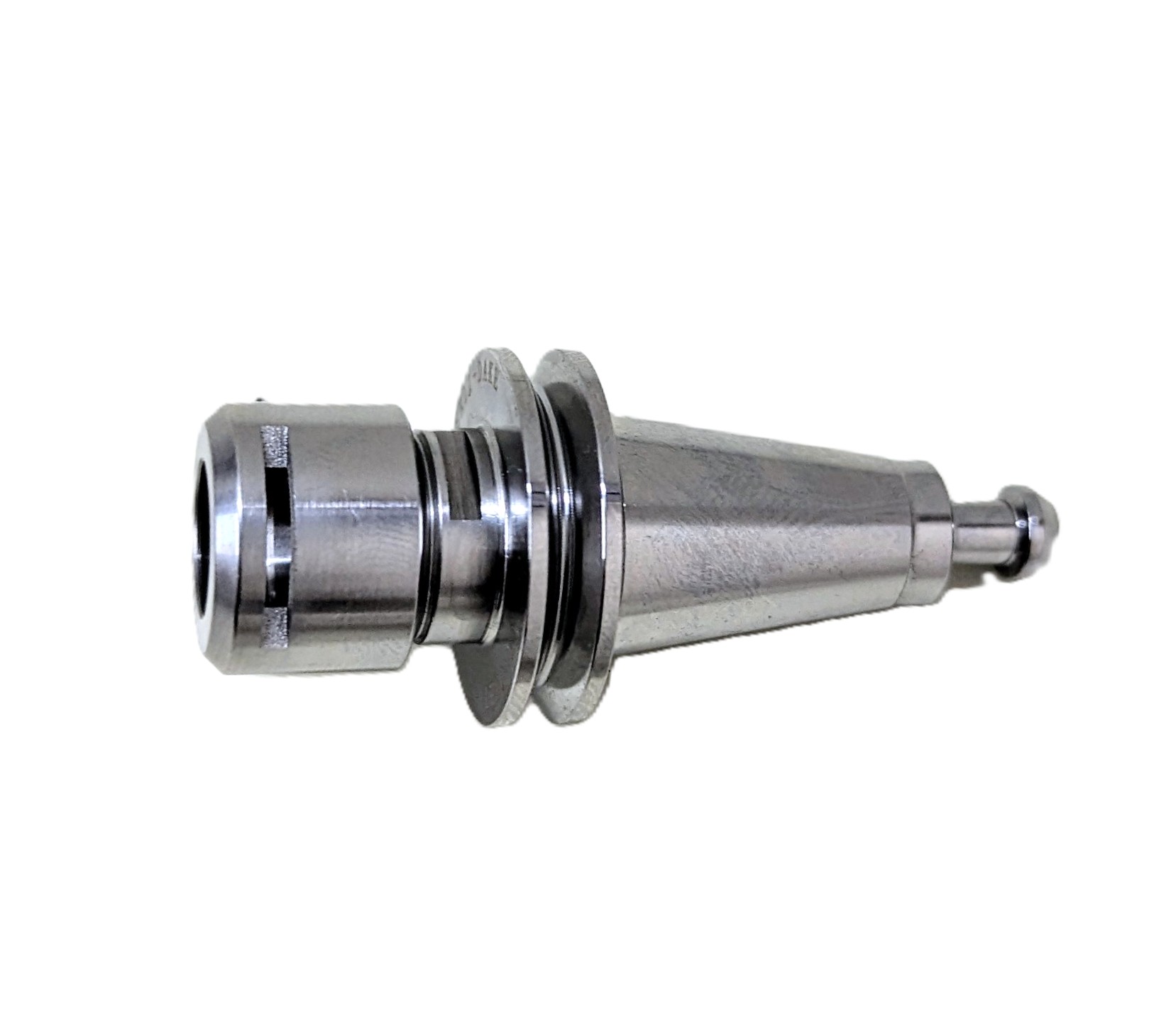

iso10 holders

Model no. ISO10-ER11-22MS

NK Engineering Services is a supplier of high-quality, High Precision, highly balanced ISO10 Holders for ATC spindle motors, specifically designed for 62mm ISO 10 ATC spindles.

Application:

CNC ATC Spindle
CNC MTC Spindle
Drilling spindle
Engraving spindle
Grinding spindle

NK Engineering Services offers a range of premium quality ISO10 Holders.

Premium Quality
It gives machine premium look
Standard size as per Industry
Quick Installation
Light Weight
Easy replacement

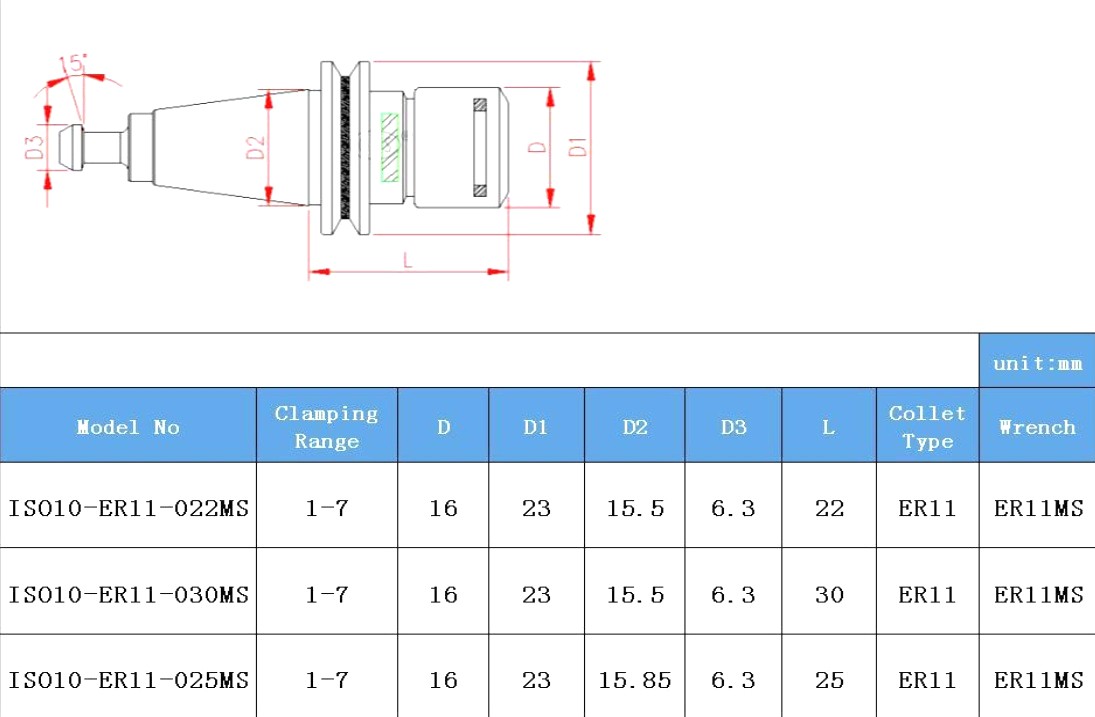

S.no.	Parameter	Value
1.	Model no.	ISO10-ER11-22MS
2.	Material	4Cr13 Stainless Steel
3.	Hardness	HRC51-53
4.	Clamping range(mm)	1 - 7
5.	Accuracy	0.001mm
6.	Balancing	G1.0
7.	Suitable wrench	ER11MS
8.	Suitable Collet	Er11
9.	Weight(kg)	0.1kg

ISO10 Holders

Model no. ISO10-ER11-22MS
