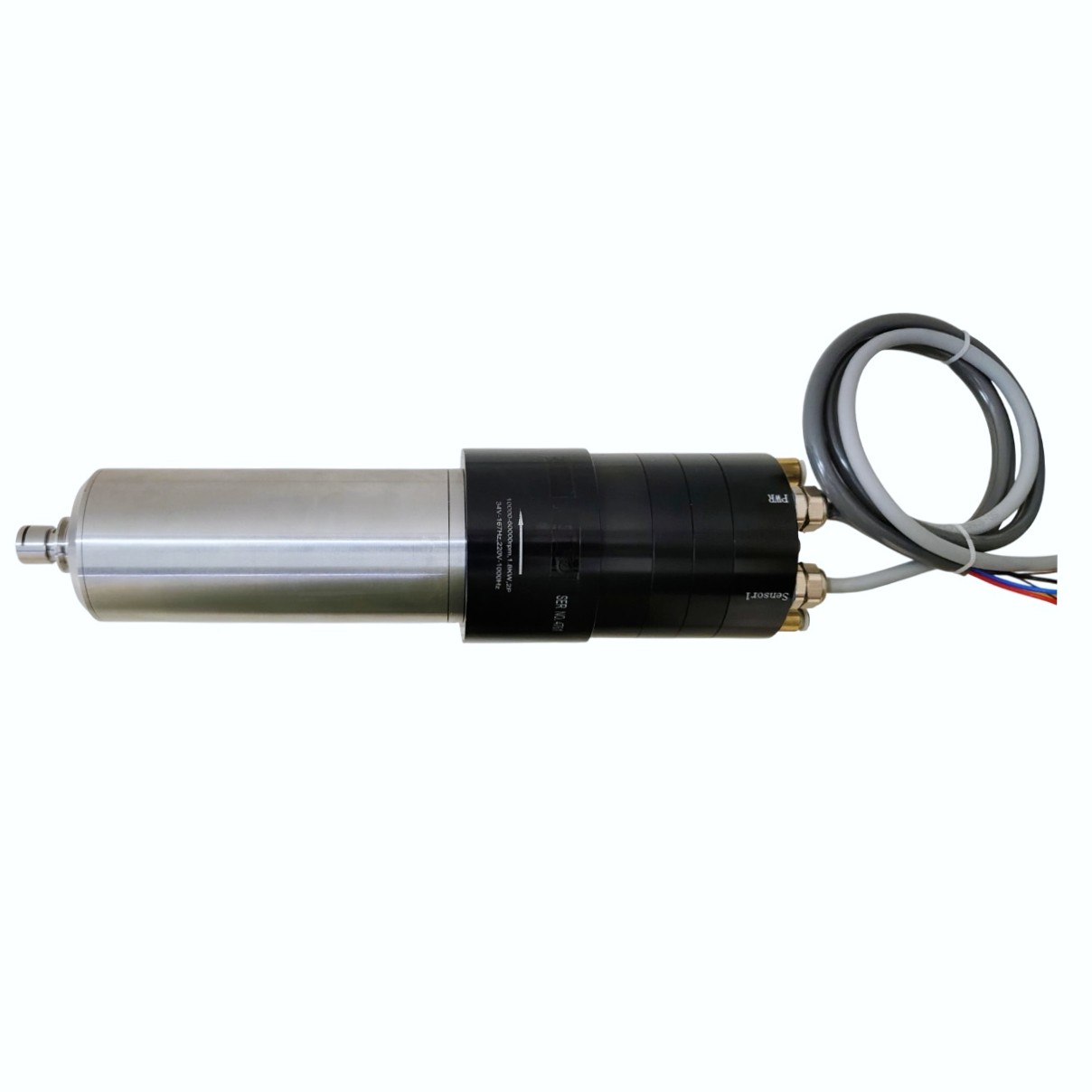

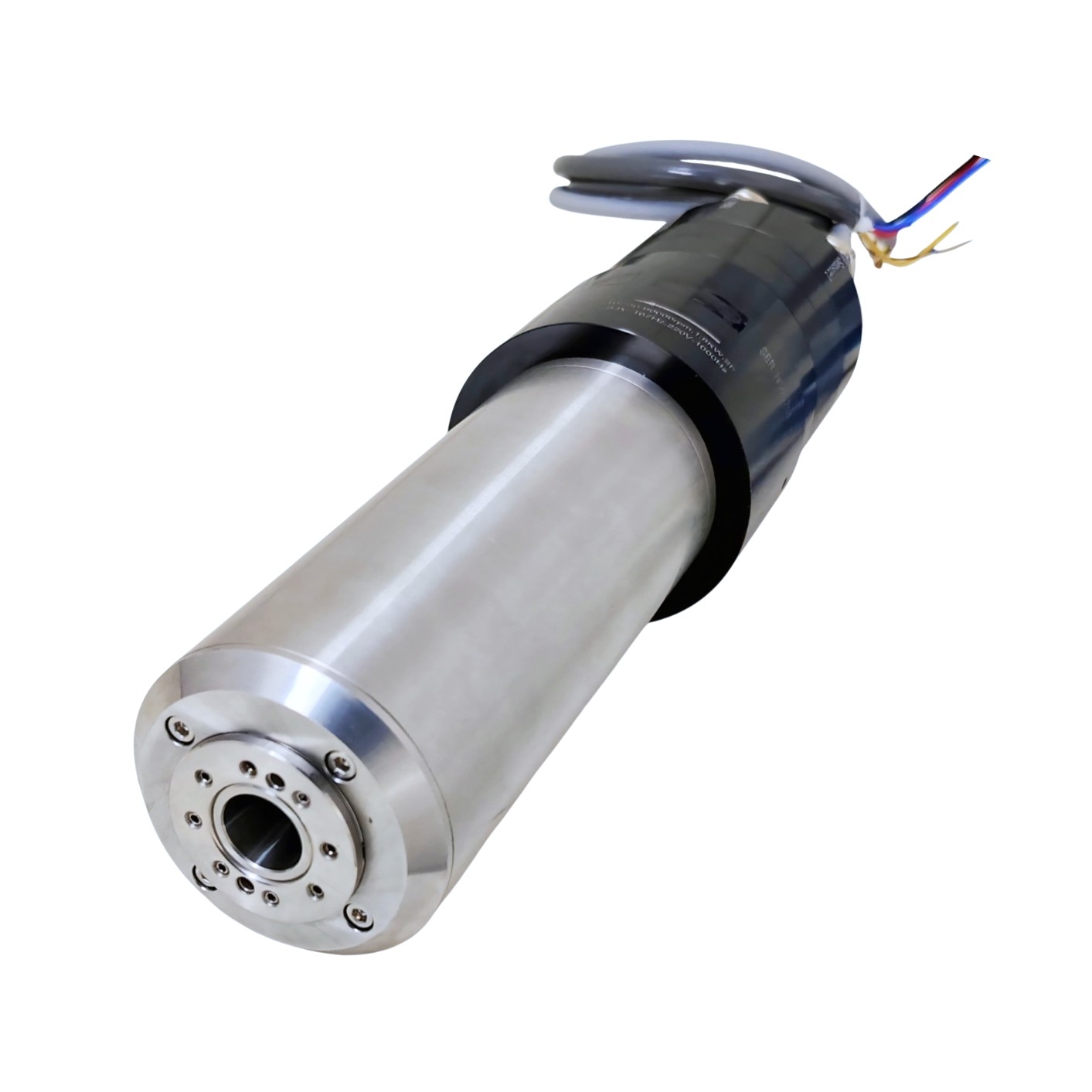

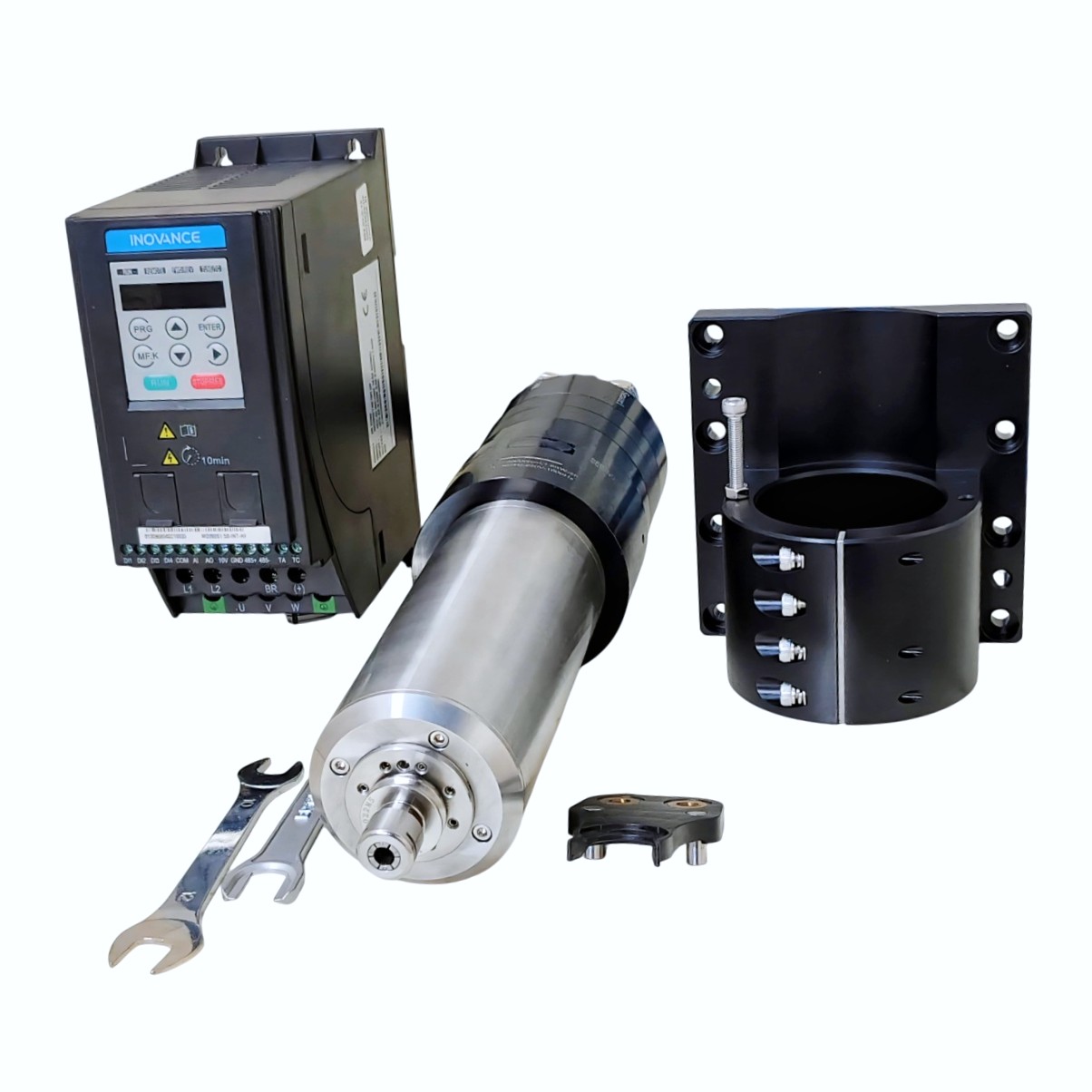

CNC ISO10 1.8kw Spindle Motor(A)
High Performance ISO10 Spindle
With a rich experience of spindle motors, NK Automations provide High frequency Spindle with ultra-hybrid ceramic bearings for précised CNC machine applications like CNC Engraving, CNC bangle engraving, Machining of high precision auto parts, Sheet Cutting and PCB drilling and routing. The spindle is small enough for light machines, but powerful enough to get the job done.
Also it has superior quality, enhanced reliability, smooth motion and balancing stability.
The spindle structure is a fast-automatic tool change mechanism, and the tool holder is equipped with ISO10-er11
Our 1.8kw and 60,000 rpm High frequency Spindle with Ultra hybrid ceramic bearings (GMN brand) has a robust construction and highly précised and is in accordance with set industrial standards. High overload capabilities and high operation speed range are distinctive features of our Spindle Motors offering exceptional dynamic performance.
Application:
CNC PCB Drilling Machine
CNC Sheet Metal Drilling
CNC Bangle Engraving
CNC Mobile Tempered Glass Engraving
CNC Mobile Body and cover Engraving
CNC Glass Epoxy Engraving
CNC Denture Machine
CNC Aluminium Drilling
CNC Glass grinding
In Robotics arm for machining automobile Components
