Model no. MTC-2.2-24

NK Engineering Services' high-frequency ball bearing spindles are designed for precision applications, offering compact and robust solutions for small machines. Our multi-tasking water-cooled Spindles come in various configurations, meeting industrial standards, and deliver exceptional performance with high overload capabilities and a wide speed range. Our Water-Cooled Spindles are ideal for demanding manufacturing processes such as CNC routing, engraving, metal cutting, sheet cutting, and PCB drilling.

Salient Features:

Superior quality, reliability, smooth motion, and balancing stability.
Our CNC spindle motor features a manual tool change mechanism with an Er 16 tool collet, allowing for easy and precise tool changes.
This precision ceramic ball ultra-high-speed spindle bearing is designed to excel in complex tasks with ease. It boasts superior quality, enhanced reliability, smooth motion, and balancing stability. Its high-speed capability makes it suitable for demanding applications requiring precise movement and minimal vibration, making it an ideal solution for aerospace, medical, and manufacturing industries.

Industrial Application:

CNC PCB Drilling Machine
CNC Sheet Metal Drilling
CNC Bangle Engraving
CNC Wood Carving
CNC Key Making
CNC Mobile Tempered Glass Engraving
CNC Mobile Body and cover Engraving
CNC Glass Epoxy Engraving
CNC Aluminium Drilling

With a compact design at high speed, low noise, and long and stable operational life, NK Engineering Services CNC MTC spindles for CNC machines are small enough for light machines but powerful enough to get the job done. With rpm up to 24,000 rpm range, motor power as per requirement, and static runout of ≤2.0μm, the spindle is ideal for CNC Bangle engraving, sheet cutting, PCB drilling and routing, dentures making, mobile cover making and other similar applications.

Other features include superior quality, enhanced reliability, smooth motion, and balancing stability. The spindles can complete very complex tasks quickly.

High precision: dynamic precision≤8μm, static precision≤2μm, shaft rotation runout≤1μm.
Small volume, small inertia, small heat variables.
Balance Grade: G0.4, low vibration, low noise.
High configuration: Manual Tool change mechanics system, super-precision ceramic ball bearing.
Low failure rate: Precision design, simple structure and easy maintenance.
Dustproof and waterproof: The front end of the spindle adopts a multi-layer labyrinth structure to improve dust sealing and waterproofing.
High rigidity: The built-in motor, the front bearing seat, and the spindle are integrated, significantly improving the overall rigidity and coaxial precision.

Spindle Specification
Model no.	MTC-2.2-24	Speed range(rpm)	1000-24,000
Voltage range(V)	220	Frequency(Hz)	400
Max. Current(A)	8.8	Power(KW)	2.2
Bearing type	Ceramic Bearing	Spindle weight（kg）	5
Item	Technical Parameter
1	Static Runout（μm）	≤2.0
2	Dynamic Runout（μm）	≤8.0
3	Vibration（mm/s）	≤1.0
4	Collet	2mm to 10mm
6	Cooling water temperature（℃）	20±2
7	Cooling water flow（L/min）	≥1.2
8	Cooling oil flow（L/min）	≤3.0

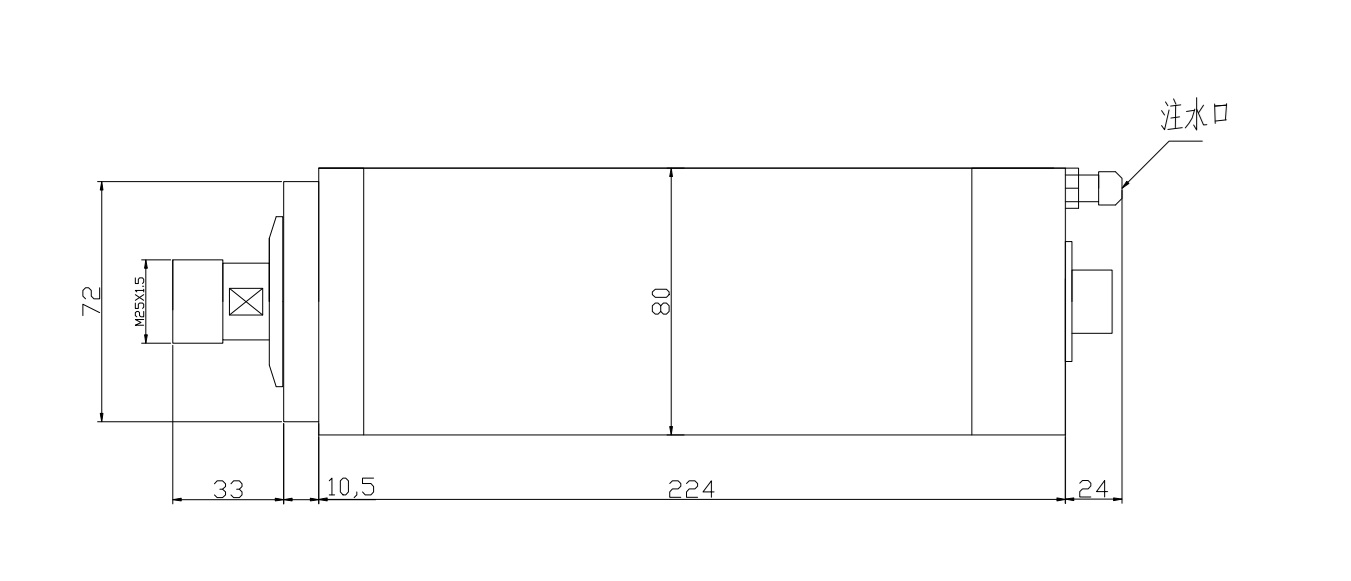

9	Dimensions (mm)	80 x 225
10	Collet type	Er 16/ Er20
11	Poles	2

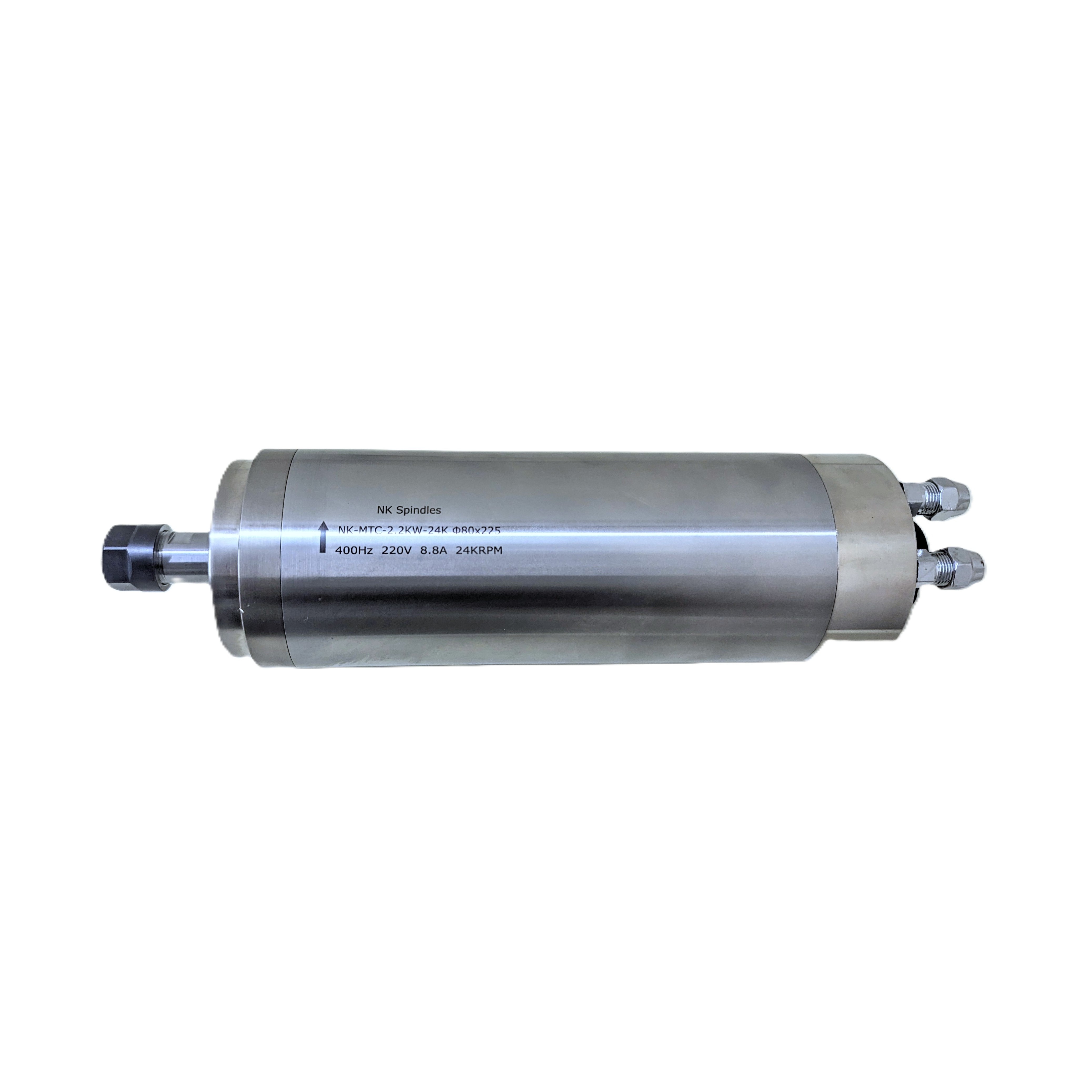

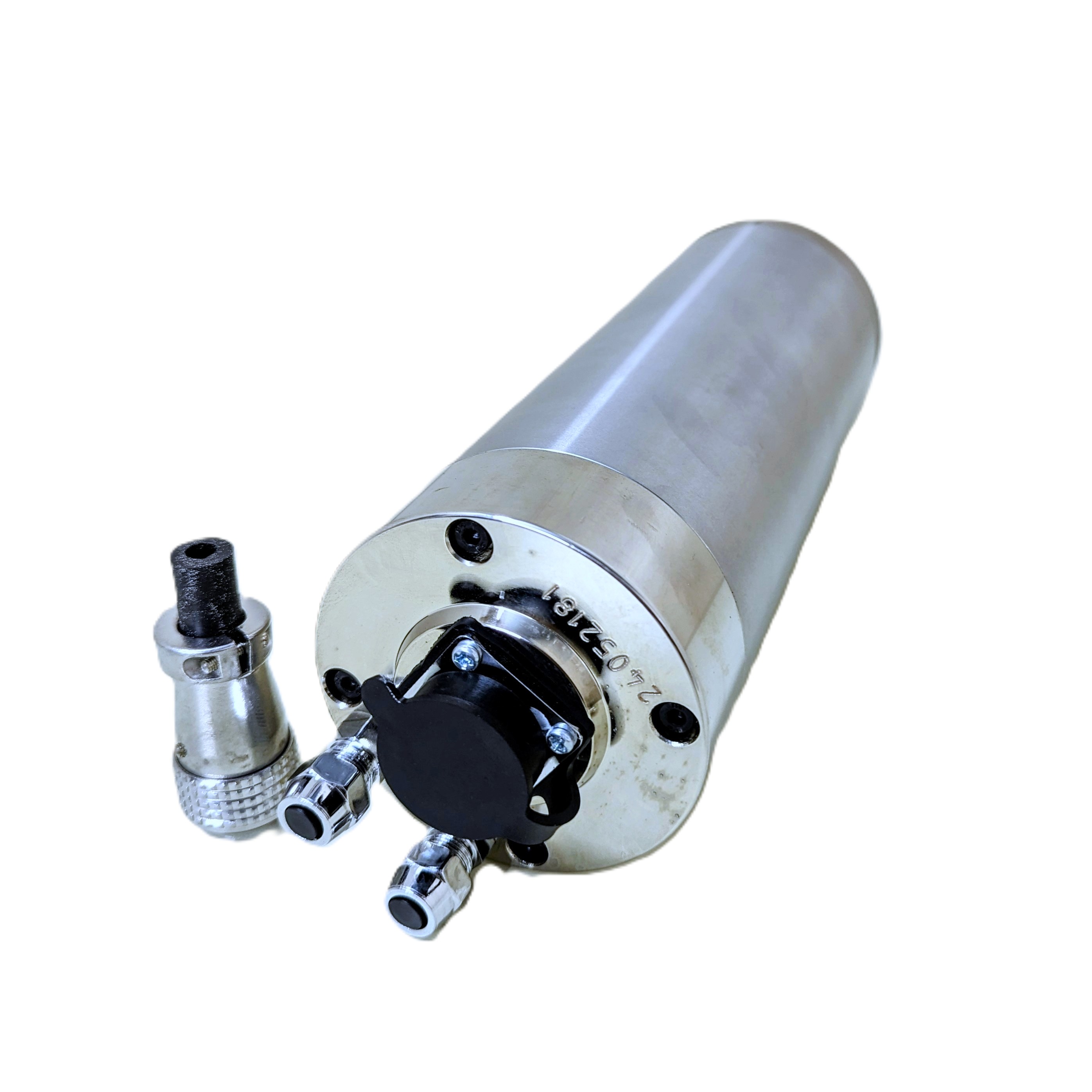

CNC 2.2kw 24k rpm Spindle

Model no. MTC-2.2-24
