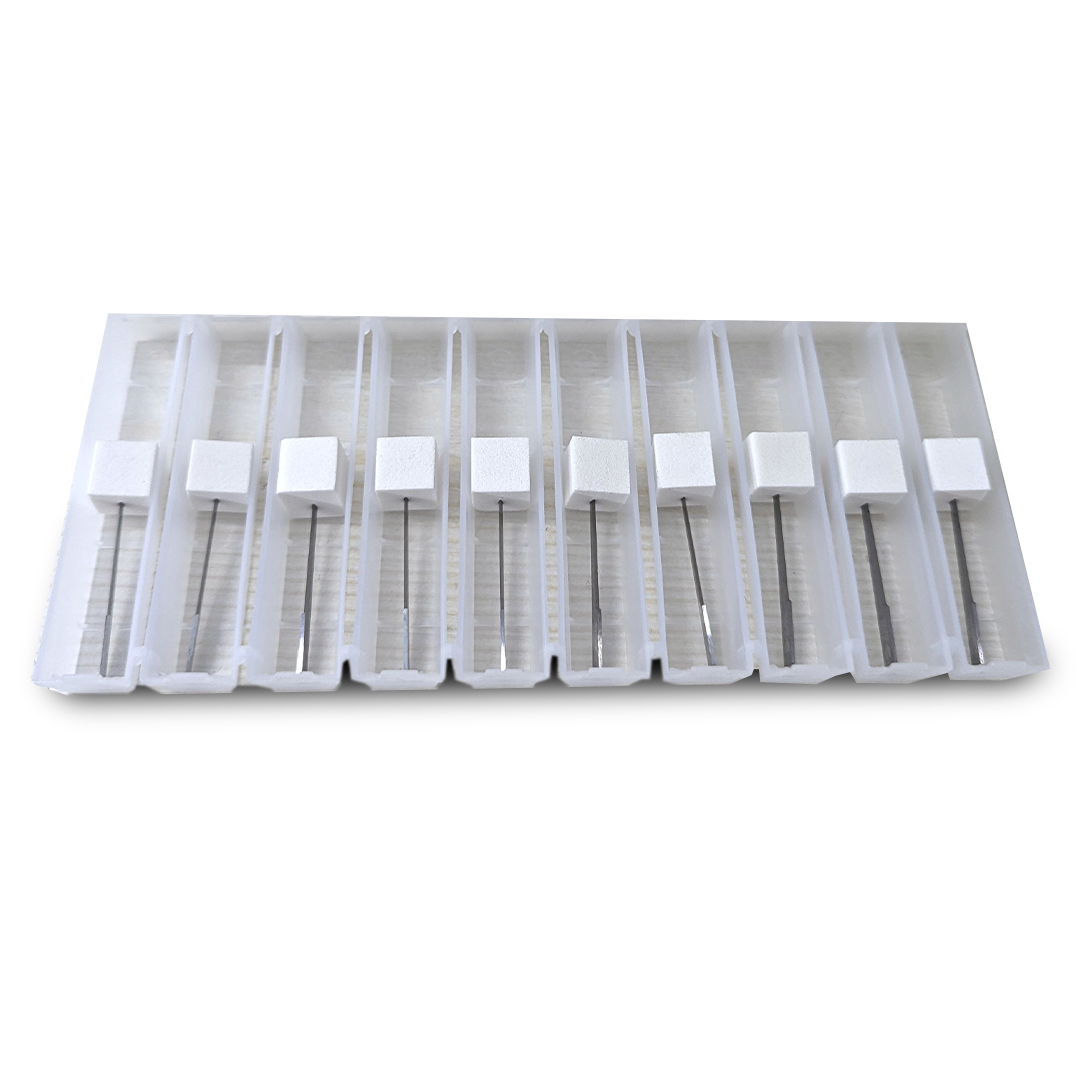

Carbide Blades

Carbide blades are tungsten carbide oscillating knives designed for cutting systems, optimized for cutting foam board, corrugated cardboard, honeycomb, and insulating mats with high precision and durability.

Applications:

Foam board
Corrugated cardboard
Honeycomb panels
Acoustic felt
Insulating mats
Carpet
Display board
Other thick substrates

Durability: Tungsten carbide edge lasts much longer than steel.
Precision: Dual-angle geometry ensures clean cuts in thick substrates.
Compatibility: Works across multiple cutting systems (Zünd, Esko, Gerber, Summa, Colex).
Versatility: Handles both soft foams and rigid packaging boards.

Tungsten Carbide Construction: Extremely hard and wear-resistant, lasting much longer than standard steel blades.
Dual-Angle Geometry: 45° cutting edge with 86° wedge angle ensures clean cuts in thick substrates.
High Cutting Depth: Up to 25–26 mm, suitable for foam board, honeycomb, and corrugated cardboard.
Precision Cutting: Ultra-sharp edge delivers smooth, dust-free cuts with minimal fraying.
Versatility: Effective on a wide range of materials—EVA foam, carpet, felt, acoustic mats, display board, and packaging substrates.
Durability: Carbide edge resists chipping and maintains sharpness even under continuous industrial use.
Low Maintenance: Requires less frequent blade changes, reducing downtime in production

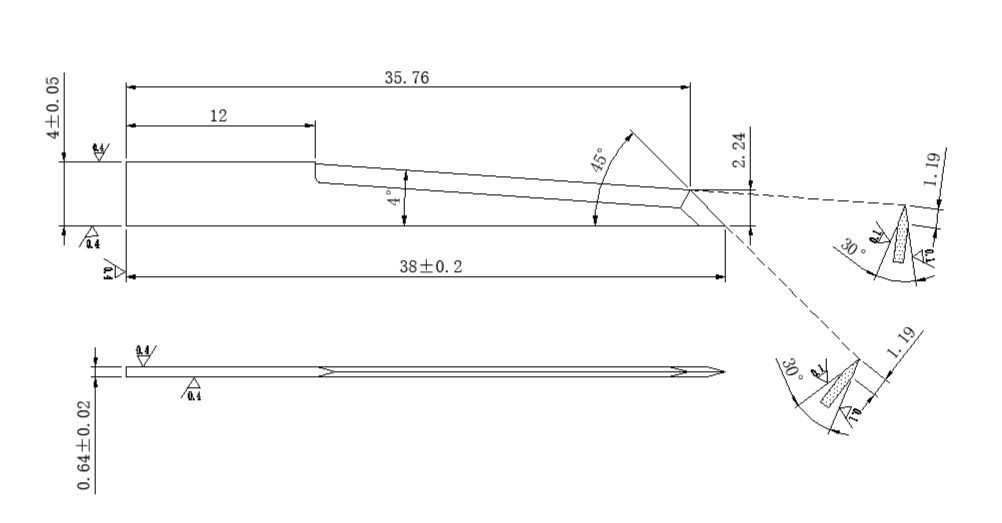

Material: Fine-grain tungsten carbide (HM – hard metal)
Blade Type: Oscillating flat knife, pointed dual-angle profile
Thickness: 0.63 mm
Knife Width: 4.0 mm
Knife Height: 38 mm
Cutting Angle: 45° (cutting) / 86° (wedge)
Max Cutting Depth: 25–26 mm
